Serial LED Matrix Module (Arduino & Raspberry Pi Compatible)
$8.95
✅SHIPS TODAY

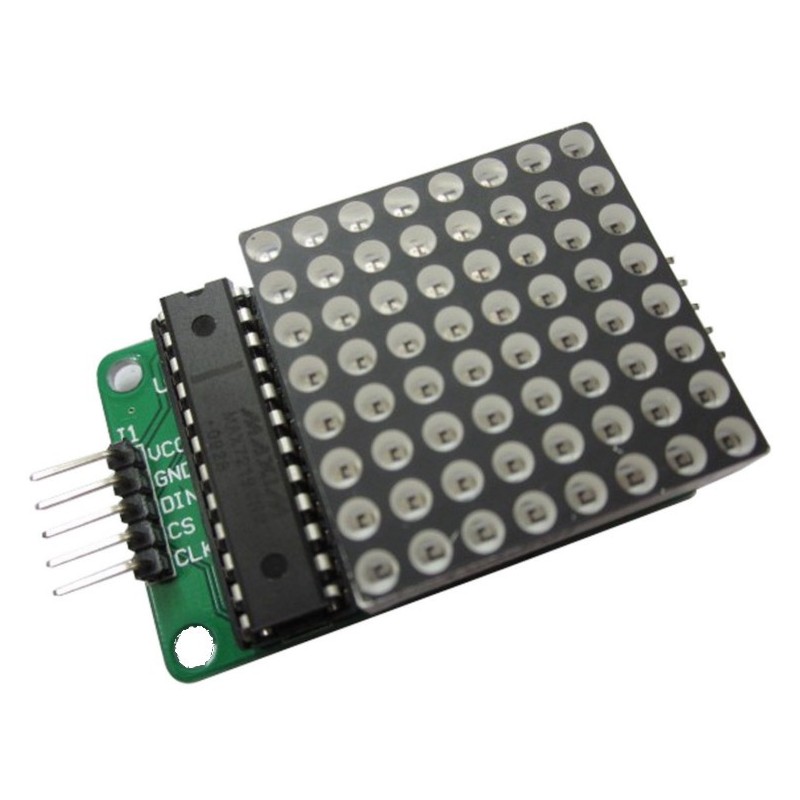

This Serial LED Matrix Module gives you a standard 8x8 LED Matrix with a built in MAX7219 serial driver chip. Control the entire matrix using just 3 data pins!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Easily interface with LED Matricies using these serial LED Matrix Modules. With a MAX7219 Serial Driver Chip on board, you can easily control the entire 8x8 LED Matrix using only 3 pins from your Arduino or other microcontroller! Just connect, according to the pinout below and you'll have the easiest method of controlling an LED Matrix! Daisy-chain multiple of these modules together for large scrolling displays!
Pinout:
- VCC: 5V
- GND: 0V
- DIN: Data Input (D11 from your Arduino, Raspberry Pi or other microcontroller)
- CS: Chip Select (D12 from your Arduino Raspberry Pi or other microcontroller)
- CLK: Clock Signal (D10 from your Arduino Raspberry Pi or other microcontroller)
Specifications:
- 8x8 LED Matrix Display
- Controller Chip: MAX7219
- Power Supply Voltage: 5V
- Size: 50mm x 32mm x 15mm
- Communication Protocol: SPI
Raspberry Pi Wiring:
- VCC: 5V
- GND: GND
- DIN: GPIO 10 (MOSI)
- CS: GPIO 8 (SPI CS0)
- CLK: GPIO 11 (SPI CLK)
TS-626
