8x8 RGB LED Matrix Control Board
$29.99
✅SHIPS TODAY

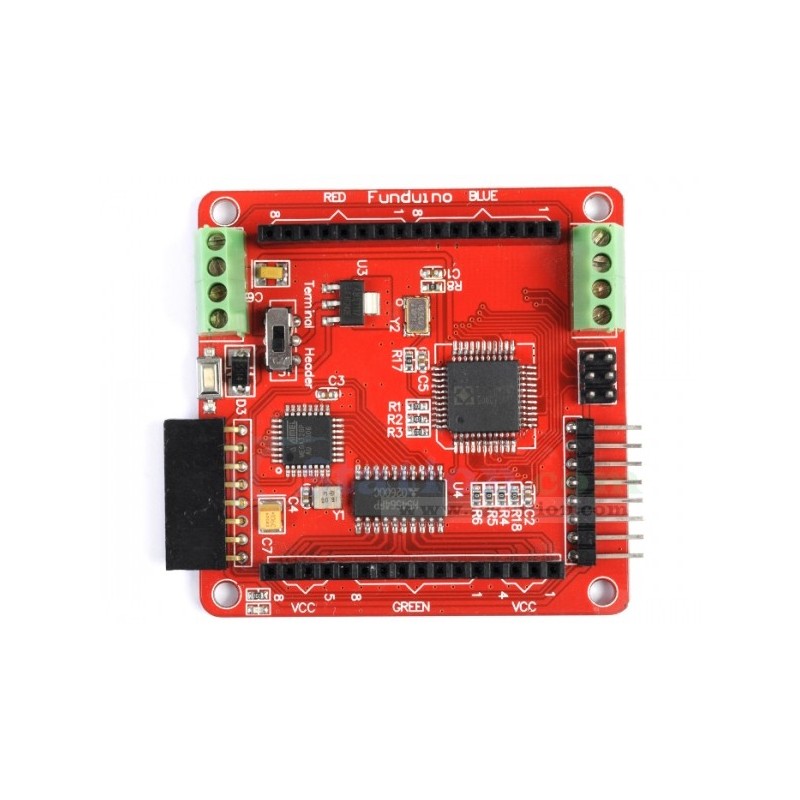

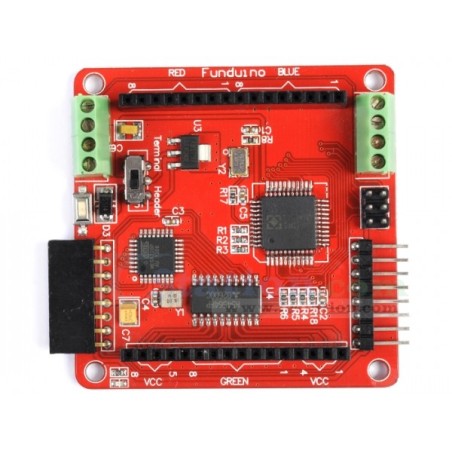

Control your RGB LED Matrix by just placing it on top of this arduino based Serial 8x8 RGB LED Matrix Driver Control Board!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features
- Arduino Based
- 6 bit color support
- Hardware 16MHZ PWM Support
- No external circuitry needed!
- Dedicated GPIO and ADC Interface
- Supports hardware UART and I2C communication
- 24 channel constant current channel current up to 100mA per channel
- 8 channel constant current source driver current up to 500mA per channel
- Operating Voltage: 5 V to 5.3 V.
- Max Current: 300mA.
- Operating temperature range: -10C to 50C
- Board color may vary: blue or red selected randomly at time of delivery.
Hardware Features
- Supports cascading multiple boards (each board plugs into the next)
- Controls an RGB full color display using just a few pins
- Supports three kinds of mixed colors
- Easy to understand dot sequence using the Cartesian coordinate system
- External power supply ports
- When cascading multiple boards, the supply voltage can be increased to about 5.2v to keep them bright. Do not exceed 5.4V.
- When cascading multiple boards, all data lines connect to the 1st sub-board. ( The origin ( 0,0 ) where the sub-board for the 1st sub-board)
Reference: http://wiki.iteadstudio.com/Colorduino_V1.4
