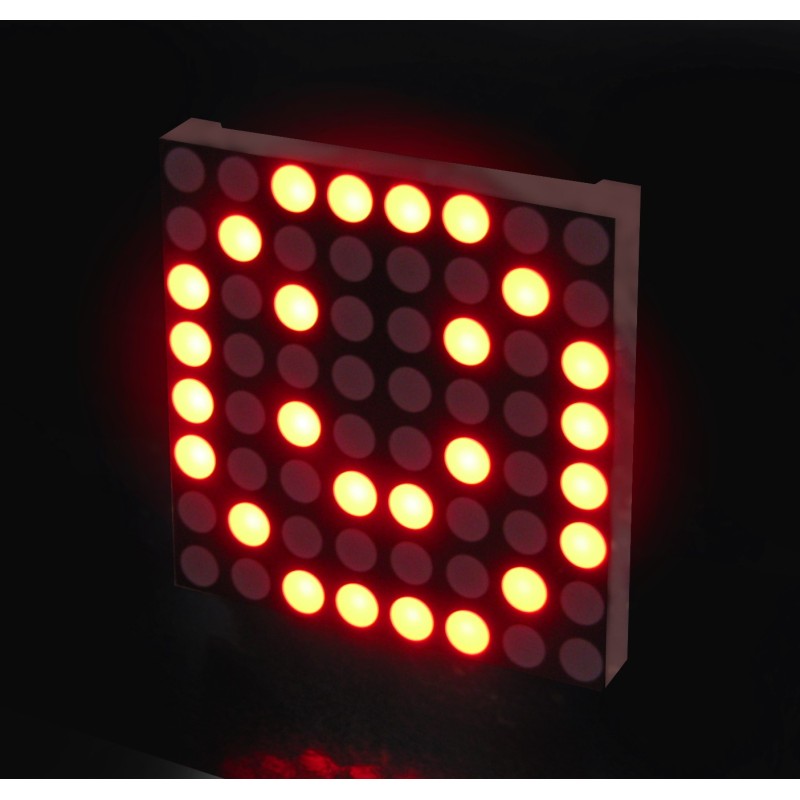

1.5" Red LED Matrix Panel - Small 8x8

$3.99
✅SHIPS TODAY

This Mini 1.5" 8x8 Red LED Matrix contains 64 Red LEDs all in one housing to generate basic red LED displays!

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

This Mini 8x8 Red LED Matrix Display contains 64 Red LEDs that can each be controlled individually! Use these LED Matricies for a basic red display with 64 pixels. Common applications include:

  • Scrolling message boards
  • Scoreboards
  • Banking Displays
  • Digital Clock Faces
  • Equalizers
  • & Other Digital Displays



Specifications:

  • LED Matrix Size: 8x8
  • LED Type: Red
  • Common Anode
  • Breadboard-friendly
  • Num of Pins: 16
  • Num of LEDs: 64
  • Forward Voltage: 2V - 2.6V
  • Luminous Intensity (Brightness): 60 mcd
  • Wavelength: 622 - 632 nm
  • Operating Temperature: -40 C to 80 C
  • Max Power Dissipation per Dot: 60mW
  • Max Peak Forward Current per Dot: 100mA
  • Max Continuous Forward Current per Dot: 25mA
  • Max Reverse Voltage: 5V
  • Dimensions: 0.28" x 1.5" x 1.5" / 7.2mm x 38mm x 38mm
  • Pinout:

Tinkersphere 1.5" Red LED Matrix Panel - Small 8x8 Wiring Diagram

TS-365
