Flexible RGB LED Matrix 8x8
$48.99
✅SHIPS TODAY

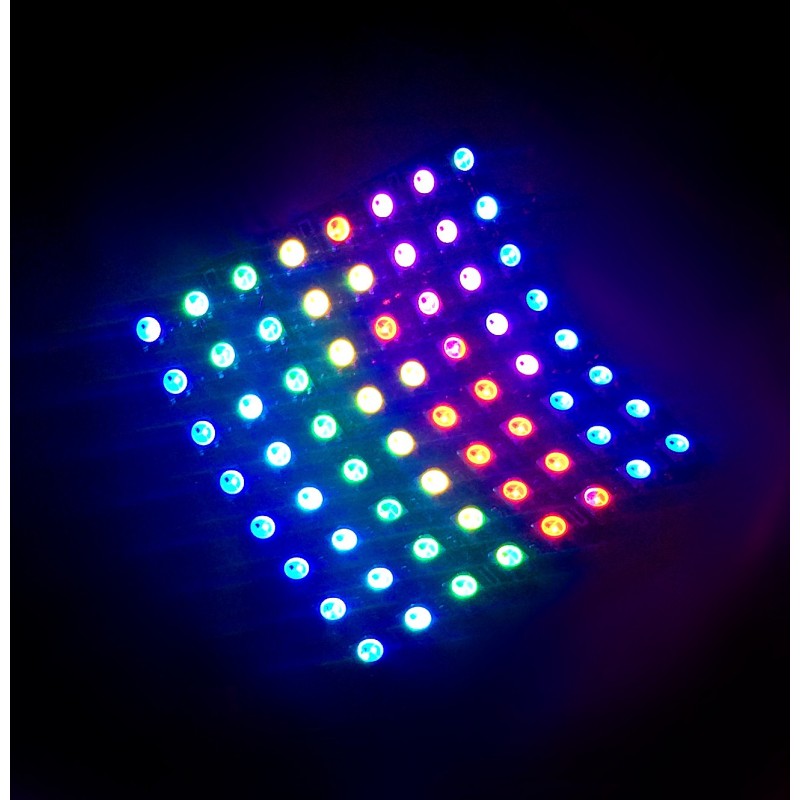

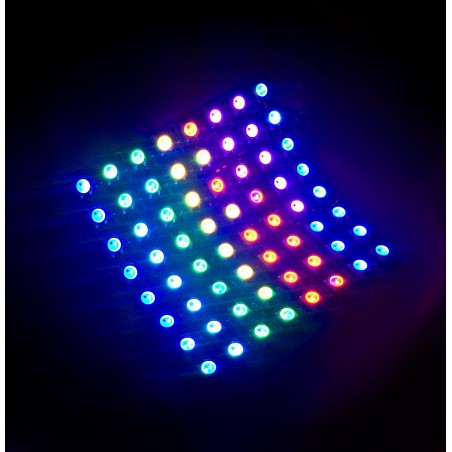

This 8x8 RGB LED Matrix Panel is flexible! Fold it, bend it, illuminate curved surfaces! With just 3 pins your can controll all 64 LEDs!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Flexible RGB LED Matrix Panel
- 3 Pin connection: Power, Ground and Signal
- Can be daisy chained together to form larger displays
- LED Type: 5050 SMD Pixel (Individually Addressable Neopixel Compatible)
- WS2812 LEDs are each individually addressable
- LED Matrix Size: 8x8
- LED Type: RGB
- Num of Pins: 1 Input, 2 power, 2 ground, 1 Output (to next panel if using more than one)
- Num of LEDs: 64
- Pixel Pitch: 10mm
- Operating Voltage: 5V
- Wave length(NM) R-650mcd, G-520mcd,B-460mcd
- Grey Scale: 256
- Viewing Angle: 120 degrees
- Chipset: WS2812B (Same as our LED Sequins and Addressable RGB LEDs)
- Operating Temperature: -20 C to 40 C
- Power Dissipation: 19.2W
- Current Draw:3.84A
- Dimensions: 0.1" x 3.1" x 3.1" / 2.5mm x 79mm x 79mm
- Terminal JST Connector Pinout:
- VCC: Red Wire
- GND: Black Wire
- DAT: Green Wire
TS1392
