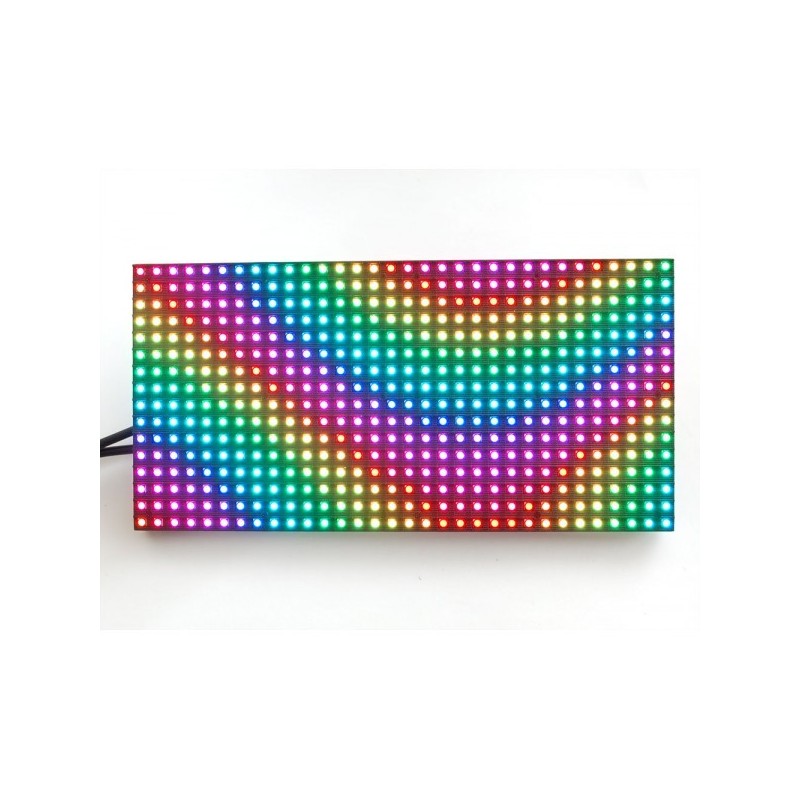

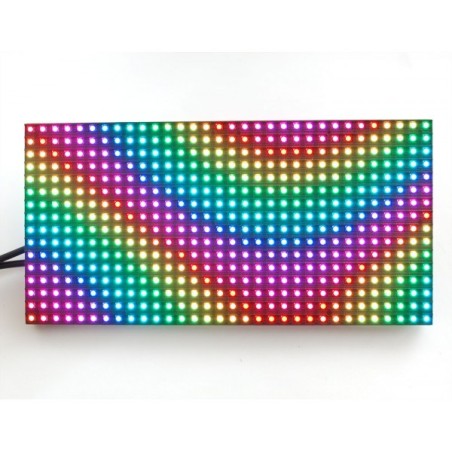

Full Color RGB LED Matrix Panel - 16x32
$29.30
✅SHIPS TODAY
This Large 16x32 Full Color RGB LED Matrix Panel contains 512 Red, 512 Green and 512 Blue LEDs all in one housing to generate amazing color displays!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This 16x32 RGB LED Matrix Display contains 512 RGB LEDs that can each be controlled individually! Use these LED Matricies for a full color display with 512 pixels. Can be controlled by Arduino or Raspberry Pi. Common applications include:
- Scrolling message boards
- Scoreboards
- Billboards
- Banking Displays
- Digital Clock Faces
- Equalizers
- & Other Digital Displays
Use this power supply, this controller, this power cable and this programming cable to program the controller and light up the matrix panel.
Specifications:
- LED Matrix Size: 16x32
- LED Type: RGB
- Num of Pins: 16 Input, 4 power, 16 Output (to next panel if using more than one)
- Num of LEDs: 512
- Pixel Pitch: 6mm
- Operating Voltage: 5V
- Luminous Intensity (Brightness): 2000 cd / sq meter
- Ideal Viewing Distance: 5m - 40m
- Drive Mode: Constant Current 1/8 Scan
- Refresh Frequency: greater than 400Hz
- Viewing Angle: 110 degrees
- 12 Bit Resolution
- Operating Temperature: -20 C to 60 C
- Operating Humidity: 10% - 90%
- Max Power Dissipation: 22.12W
- Average Power Dissipation: 11.98W
- Max Current Draw: 4.42A
- Average Current Draw: 2.4A
- Dimensions: 7.6" x 3.8" x 0.5" / 192mm x 96mm x 12mm
