16 x WS2812 5050 RGB LED Square with Integrated Drivers (Neopixel Compatible)
$7.99
✅SHIPS TODAY
This 4x4 Pixel RGB LED Square Matrix features integrated drivers! Neopixel & Arduino Compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

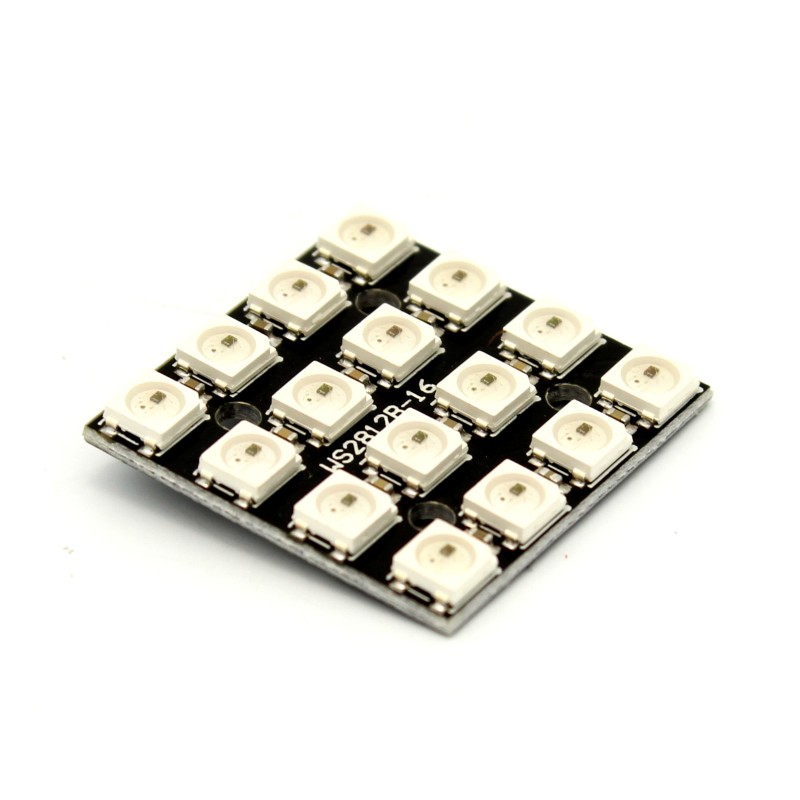

Use this 16 Pixel RGB LED Square to add squares of light to your projects. Uses just 1 pin for Input and 1 pin for Output to the next LED square, stick, ring or strip if you'd like to chain multiple together! Just connect V+ to 5V DC, G to 0V and Data Input to your Arduino or other microcontroller to control the whole square. Each of the 16 WS2812 RGB LEDs has a chip inside which allows you to control them when chained one after the other.
Specifications:
- RGB LED Square
- Chipset: WS2812 (Neopixel compatible)
- Number of LEDs: 16
- Data Transmission: up to 800Kbps
- Refresh Rate: 30 frames / sec
- Scanning Frequency: greater than 400Hz/s
- Full color: 16777216 colors, 256
- Dimensions:
- Length: 1.18" (30mm)
- Width: 1.18" (30mm)
- Thickness: 0.12" (3.19mm)
- Can be soldered to conductive thread or wire
- Pinout:
- 5V
- GND
- DIN: Data Input
- DOUT: Data Output (connect to the Data Input of the next LED ring or just leave unattached)
- Click here to download the Datasheet
- Click here to download the Arduino Sample Code
