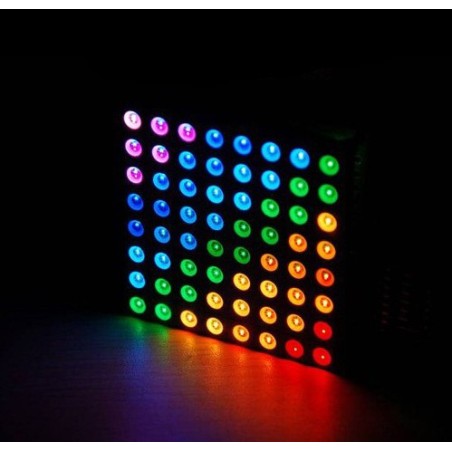

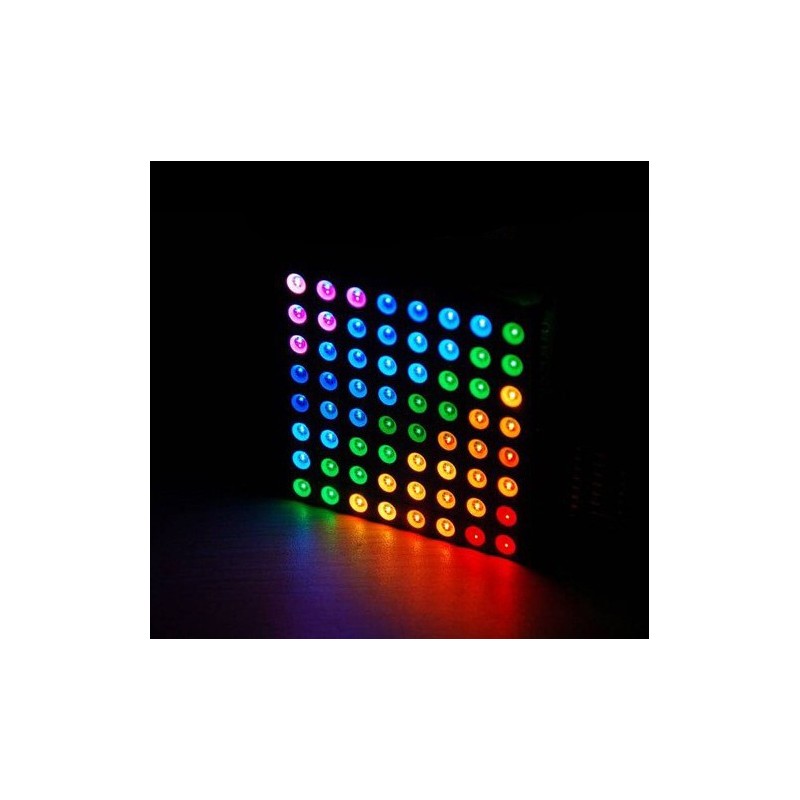

Full Color RGB LED Matrix Panel - Large 8x8

This 8x8 RGB LED Matrix Display contains 64 RGB LEDs that can each be controlled individually! Use these LED Matricies for a full color display with 64 pixels. Common applications include:

• Scrolling message boards
• Scoreboards
• Billboards
• Banking Displays
• Digital Clock Faces
• Equalizers
• & Other Digital Displays

Specifications:

• LED Matrix Size: 8x8
• LED Type: RGB
• Num of Pins: 32
• Num of LEDs: 64
• Forward Voltage:
  • Red: 2.3V
  • Green: 3.4V
  • Blue: 3.4V
• Luminous Intensity (Brightness):
  • Red: 100 mcd
  • Green: 270 mcd
  • Blue: 80 mcd
• Wavelength:
  • Red: 622 - 625
  • Green: 522.5 - 523.5
  • Blue:  466.25 - 467.5
• Operating Temperature: -40 C to 80 C
• Max Power Dissipation: 150mW
• Max Peak Forward Current: 70mA
• Max Continuous Forward Current: 50mA
• Max Reverse Voltage: 8V
• Dimensions: 0.33" x 2.38" x 2.38" / 8.4mm x 60.5mm x 60.5mm
• Pinout:

Click here to view the Wiring Diagram with 4 8 Bit Shift Registers, 16 220 Ohm Resistors and 8 330 Ohm Resistors.

Click here to download the sample Arduino Sketch for the TS-359 8x8 RGB LED Matrix Panel.
