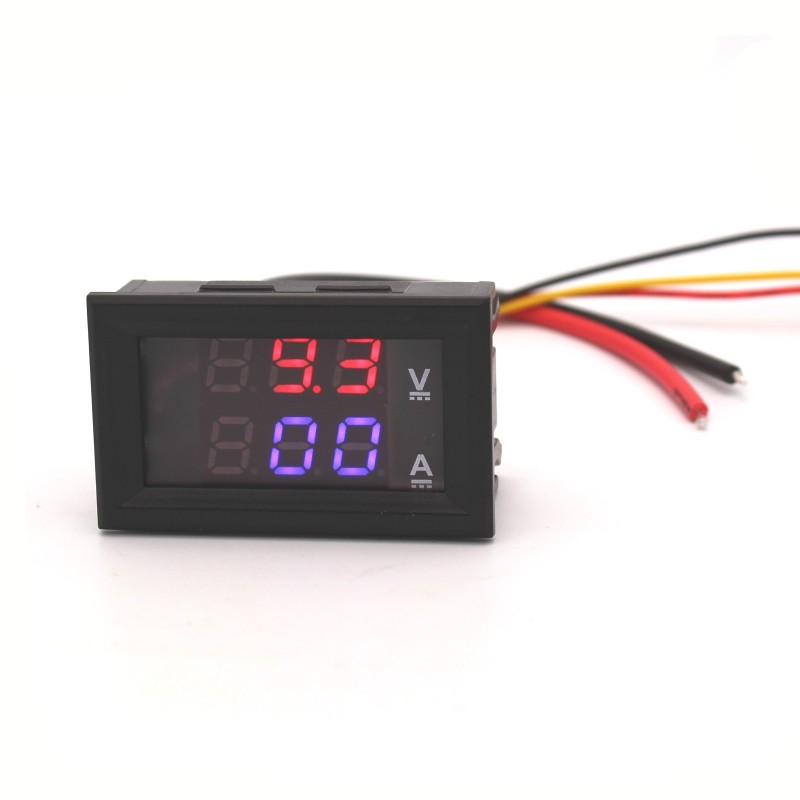

Digital Volt and Amp Meter Simultaneous Display
$12.99
✅SHIPS TODAY
Simultaneously measure voltage and current on a convenient colored panel mount meter display. Red for voltage and Blue for current.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Simultaneously measure voltage and current
- Panel mount design can be mounted in projects or used as is
- Color coded for easy identification
- Blue for Current
- Red for Voltage
- Bright digital readout
- High precision
-
Current: Range x 0.08% + two digits
-
Voltage: Range x 0.08% + two digits
-
-
Operating Voltage: 4.5V to 30V DC
-
Operating Current: less than 20mA
-
Digit Height: 0.28"
-
Measuring range:
-
Voltage: 0-100V
-
Current: 0-10A
-
-
Built-in shunt
-
Maximum working voltage: +30V
-
Refresh rate: about 1S / 3 times
-
Operating temperature: -10C - 65C
-
Operating pressure: 80 - 106 kPa
-
Dimensions: 1.89" x 1.14" x 0.83" (4.8cm x 2.9cm x 2.1cm)
-
Wiring:
-
Thin Red Wire: power supply +
- Thin Black Line: com -
-
Thin Yellow line (thick): PW+, measuring terminal voltage input positive
-
Thick Red Wire: IN +, current input
-
Thick Black Wire: com -
-
-
Note: Please follow the wiring diagram in the images above, the load can only be connected to the positive, not negative
TS2410
