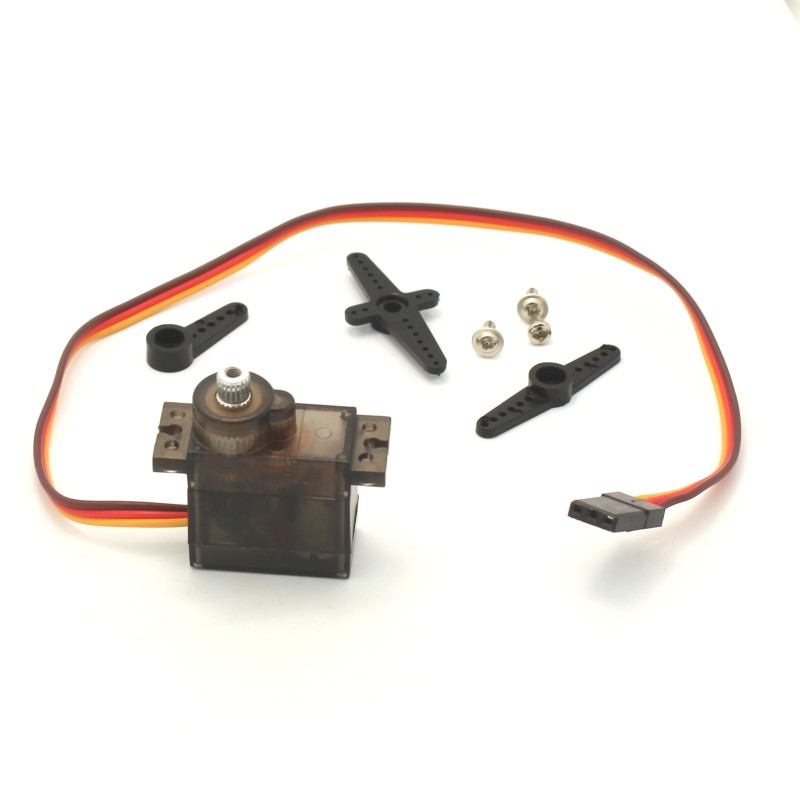

Micro Servo - High Torque Metal Gear
$9.95
✅SHIPS TODAY
This micro servo has metal gears for high torque in a small package.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This high torque metal gear micro servo is useful for projects where you need a combination of high torque and small size.
- Simple to interface with Arduino or any other microcontroller!
- All Metal Gears
- Spline Tooth Count: 20 teeth
- Connector Wire Length: 175mm
- Dimensions: 22.8 x 12.2 x 28.5 mm
- Operating Speed (4.8V no load): 0.1 sec/60 degrees (6V no load) 0.08 sec/60 degrees
- Stall Torque: 1.8 kg-cm / 25 oz-in (4.8V) ; 2.2 kg-cm / 30.5 oz-in (6.0V)
- Temperature Range: -30 to +60 Degrees C
- Dead Band Width: 1 usec
- Operating Voltage: 4.8 - 6 Volts
- Max Current Before Stall: 210mA
- Net weight: 13.4g
| Dimensions (see image above) | |
| A(mm) | 32.5 |
| B(mm) | 22.8 |
| C(mm) | 28.4 |
| D(mm) | 12.4 |
| E(mm) | 32.1 |
| F(mm) | 18.5 |
TS2594
