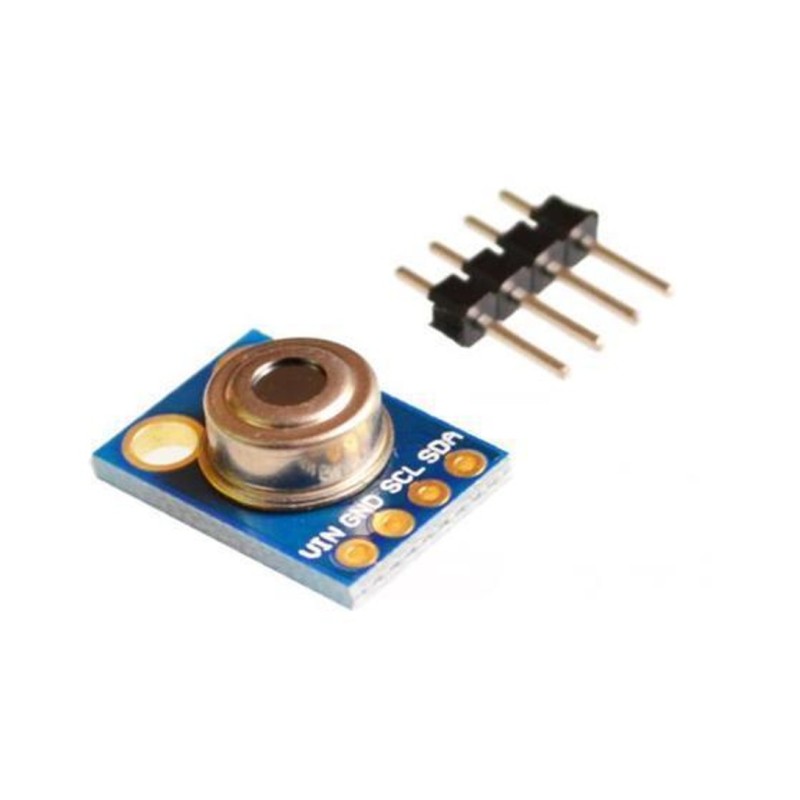

Contactless IR Temperature Sensor Module: MLX90614

Features:

• Chip: MLX90614
• Power supply: 3V - 5V DC (internal low dropout regulator)
• Communication: standard IIC communication protocol
• Non-contact infrared thermometer for use with Arduino, or any microcontroller that can communicate with it through it's I2C interface.
• This sensor comes with a breakout board with all of the components needed for operation and two types of pins.
• There are two solder jumpers for the I2C interface that may or may not need to be soldered depending on your application, but will not for most uses.
• Small size, low cost
• Mounted on a breakout board with 10k Pull up resistors for the I2C interface and optional solder jumpers
• Easy to integrate
• Factory calibrated in wide temperature range:-40 ... + 125 ° C for sensor temperature and-70 ... + 380 ° C for object temperature.
• High accuracy of 0.5 ° C over wide temperature range (0 ... + 50 ° C for both Ta and To)
• High (medical) accuracy calibration
• Measurement resolution of 0.02 ° C
• Single and dual zone versions
• SMBus compatible digital interface
• Customizable PWM output for continuous reading
• Sleep mode for reduced power consumption
• Different package options for applications and measurements versatility
• Automotive grade
• High precision non-contact temperature measurements
