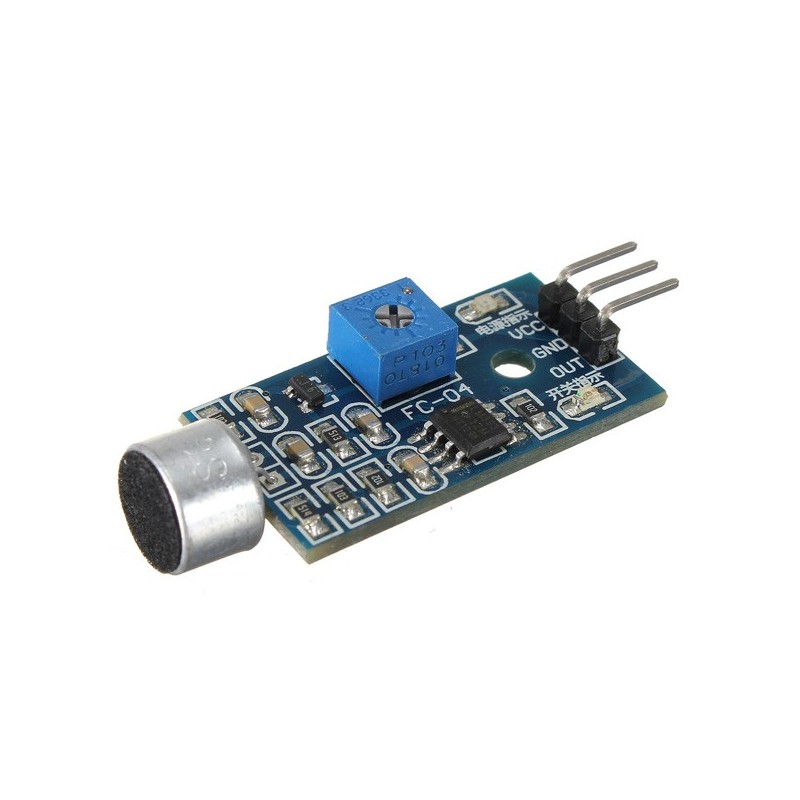

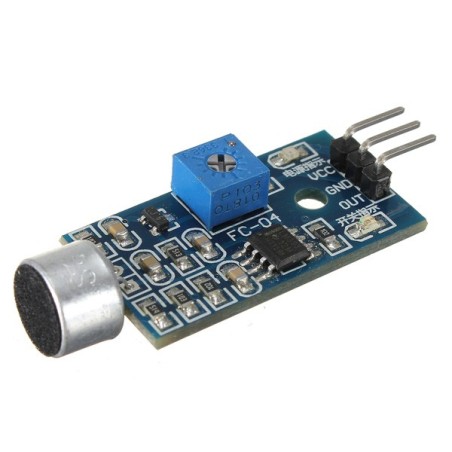

Microphone Sound Detector (Arduino Compatible)

Use this Microphone Sound Sensor to detect sound above the adjustable threshold. Useful to trigger something to happen whenever a sound is heard! Hook up Power to 5V, Ground to 0V and the output to your circuits. Super simple to use and with an amplifier and microphone right on the board, you don't need anything else to detect sound quickly and easily. Arduino compatible.

Specifications:

• Operating Voltage: 5V
• Output type: Digital
• Chipset: LM393 Comparator (compares the microphone input with the adjustable reference voltage, adjusted via potentiometer onboard)
• Pinout:
  • VCC: 5V
  • OUT: Digital Output (to microcontroller such as Arduino) High when the sound is louder than the threshold, low when sound is below the threshold.
  • GND: 0V

For an analog microphone + amplifier module check out our Electret Microphone Amplifier.

/*
Sample code for TS-919 Microphone Sound Detector
    Pin VCC to Arduino 5V
    Pin GND to Arduino GND
    Pin OUT to Arduino pin 3
*/
int ledPin = 13 ; //prepare Arduino on-board LED for use
int sensorPin = 3; //set sensor pin
int val = 0;// define a variable to store the current sensor value

void setup ()
{
  pinMode (ledPin, OUTPUT) ;// define Arduino on-board LED as output
  pinMode (sensorPin, INPUT) ;// define sensor as input
}

void loop ()
{
  val = digitalRead(sensorPin);// read the sensor value
  if (val == HIGH) // When the sound detection module detects a sound the LED on the Arduino board with light up
  {
    digitalWrite (ledPin, HIGH);
  }
  else
  {
    digitalWrite (ledPin, LOW);
  }
}
