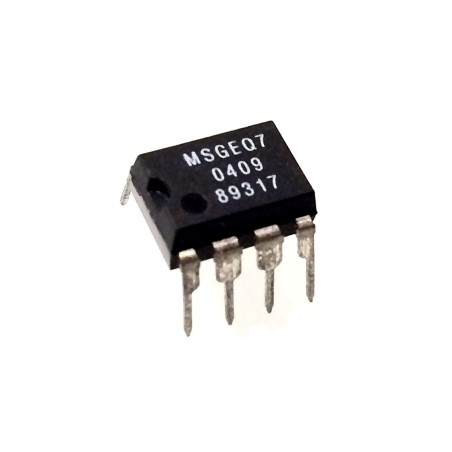

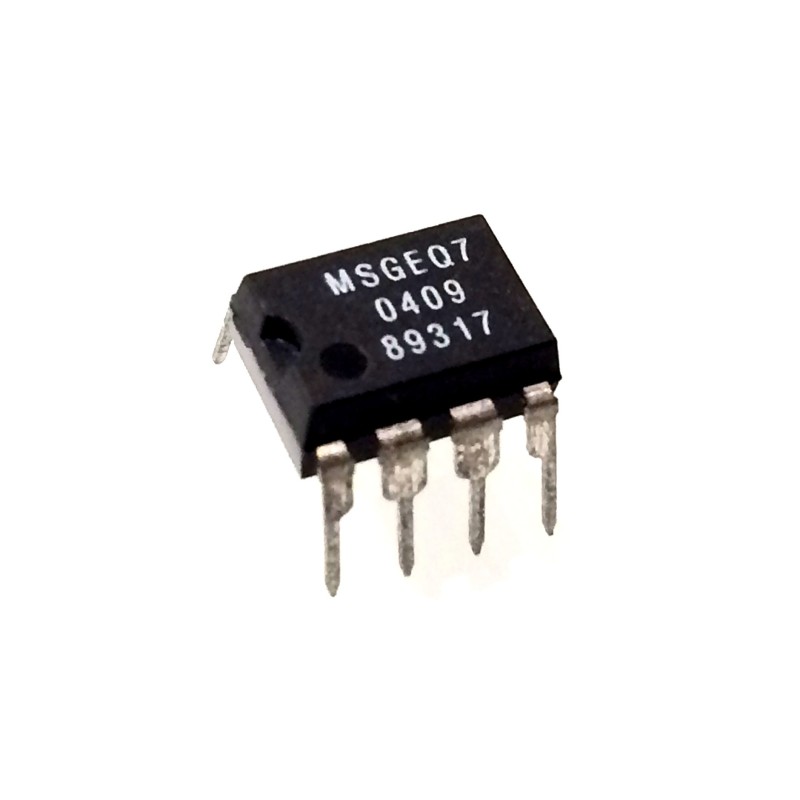

MSGEQ7 Graphic Equalizer Display Filter
$4.99
✅SHIPS TODAY
The MSGEQ7 is a seven band graphic equalizer chip used to detect the max peak of audio in each of the 7 bands and multiplex it together to provide a DC representation of the amplitude of each band. Very useful for audio projects!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This band graphic equalizer has 7 audio bands: 63Hz, 160Hz, 400Hz, 1kHz, 2.5kHz, 6.25kHz and 16kHz. Each of the seven frequencies are peak detected and multiplexed providing a DC representation of the amplitude of each band on the output. Use a resistor and capacitor to select the chip's clock oscillator frequency. The multiplexer is controlled using just two pins (reset and strobe). The multiplexer readout rate pin also sets the decay time (10% decay per read) so you can use less pins. No external components required to select filter responses just coupling and decoupling capacitors.
Specifications:
- Operating Voltage: 2.7V - 5.5V
- Typical Power Consumption: less than 1mA
- Only Needs Two External Components
- On Chip Ground Reference
- Switched - Capacitor Filters
- Gain: 20 dB
- Oscillator On-chip
- Output Multiplexer
- Variable Decay Time
- Package Type: 8 Pin DIP
Useful Tutorial for use with Arduino: http://nuewire.com/info-archive/msgeq7-by-j-skoba/
