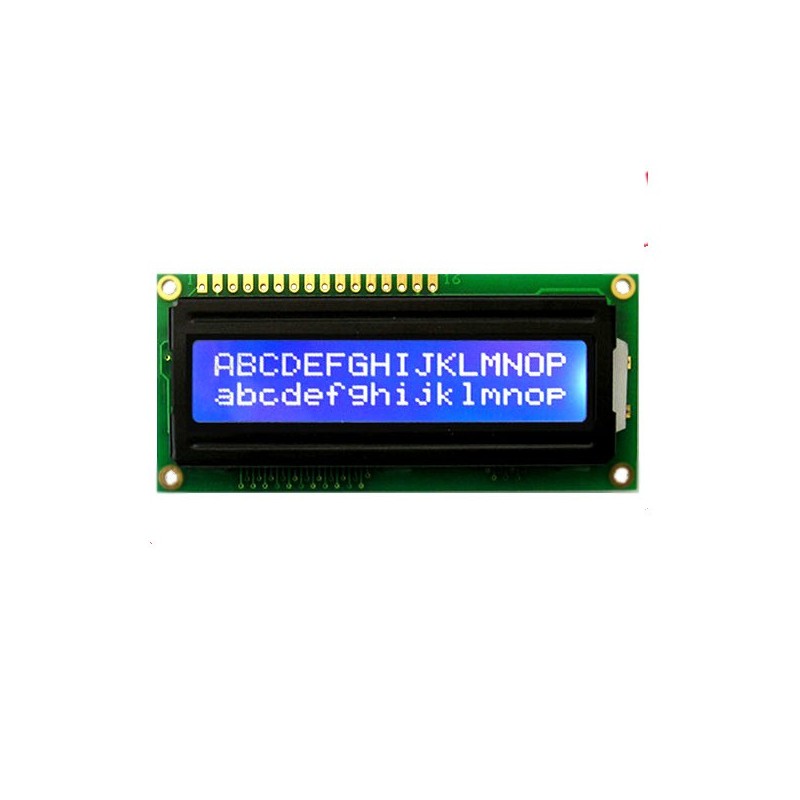

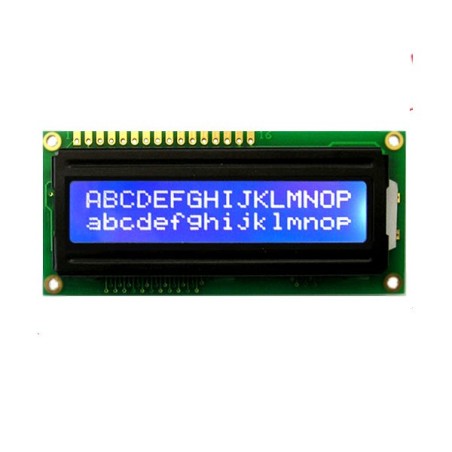

16x2 LCD Module (White Text / Blue Backlight)
$9.99
✅SHIPS TODAY
Add this 16x2 LCD Module to your projects for a 32 character display with white text on a blue backlight. Arduino & Raspberry Pi compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This LCD module allows you to display 32 characters (16 per row) on a blue backlit screen. Solder on some male header pins to stick into a breadboard or solder wires directly to the board. White text will shine on a blue illuminated background for easy viewing day or night!
Specifications:
- 16x2 LCD Module
- Arduino & Raspberry Pi compatible
- Text Color: White
- Backlight: Yes
- Backlight Color: Blue
- Pinout:
- VSS: Ground, 0V
- VDD: Logic Power Supply, 0.3V - 7V
- VO: Operating Voltage for LCD, Min voltage: VDD-15V, Max voltage: VDD+0.3V
- RS: Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
- R/W: Read / Write (H: Read Mode, L: Write Mode)
- E: Enable Signal
- DB0: Data Bit 0
- DB1: Data Bit 1
- DB2: Data Bit 2
- DB3: Data Bit 3
- DB4: Data Bit 4
- DB5: Data Bit 5
- DB6: Data Bit 6
- DB7: Data Bit 7
- LED_A: Backlight Anode
- LED_K: Backlight Cathode
- Pin spacing: 2.54mm (0.1") (like our header pins)
