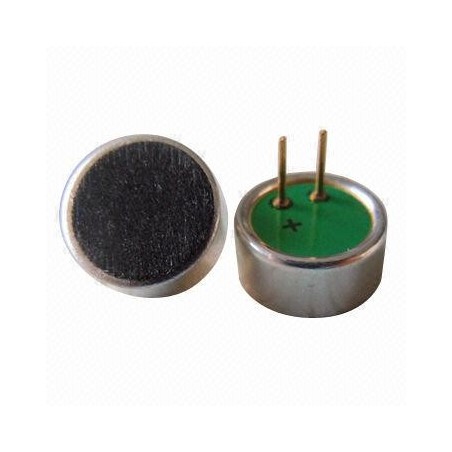

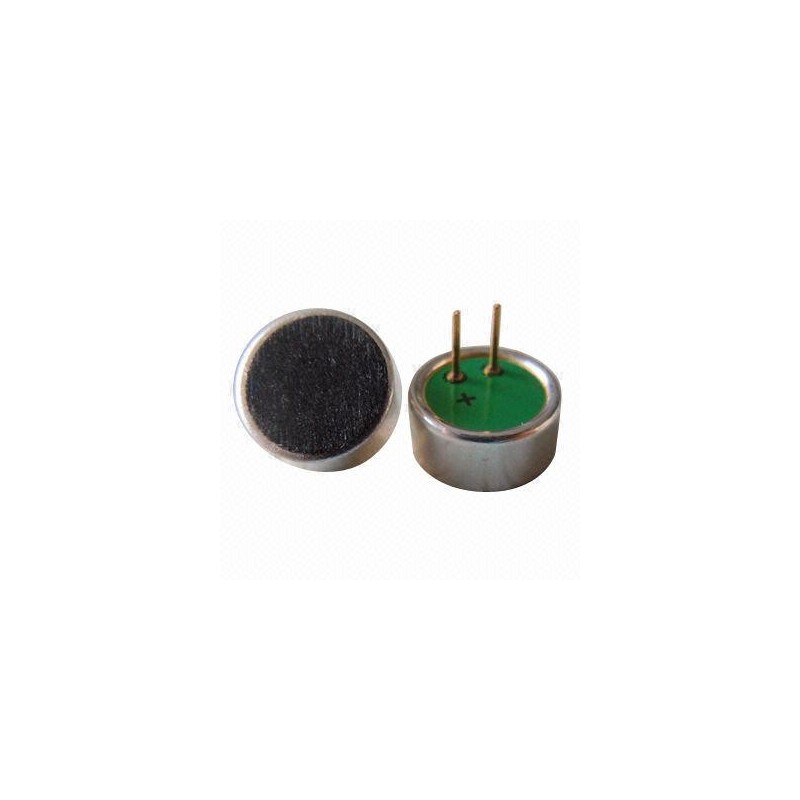

Electret Microphone - Omni-directional
$0.95
✅SHIPS TODAY
A simple little omni-directional microphone that is breadboard and perfboard mountable for all your audio projects. Arduino & Raspberry Pi compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This simple little microphone is omnidirectional, making it great for projects where you want a microphone for audio detection coming from any direction! Just plug into a breadboard or perfboard or solder wires to the 2 leads for sound detection and recording. When sound causes the film inside this microphone to vibrate, it generates a voltage of a few millivolts. You can read this voltage directly or use an Op Amp to amplify the signal. Arduino & Raspberry Pi compatible.
Specifications:
- Directivity: Omni-directional (can detect sound coming from all angles)
- Sensitivity: -45 to -39 dB
- Output Impedance: 2.2 kΩ
- Max Current Consumption: 0.5 mA
- Signal to Noise Ratio: 58 dBA
- Operating Frequency: 50 - 10000 Hz
- Sensitivity Reduction: -3 dB
- Operating Voltage: 1.1V - 6.0V DC
- Operating Temperature: -20 C to 60 C
- Dimensions:
- Microphone Diameter: 6mm
- Microphone Height: 2.2mm
- Wire Leads: 2.8mm
TS-367
