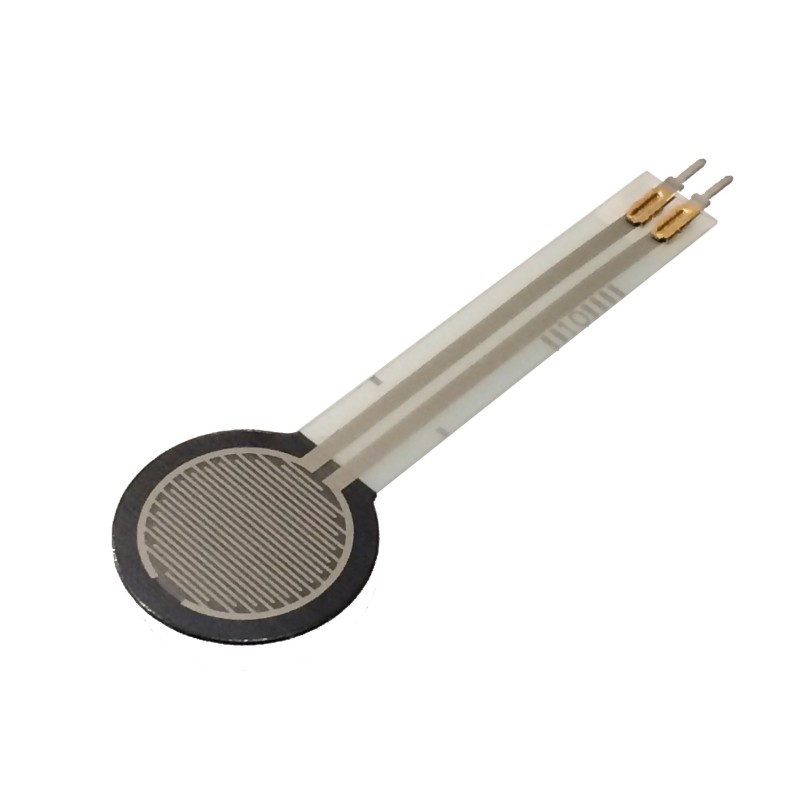

FSR: Force Sensor (Arduino Compatible)
$7.99
✅SHIPS TODAY
Measure the amount of force applied on the sensor from 0 to 22lbs. Resistance across the pins decreases as the pressure applied on the sensor increases! Arduino Compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Measure how hard or soft someone presses on a surface with this FSR (Force Sensitive Resistor). As more force is applied on the sensor, the resistance decreases. Measure pressures from 0 to 22 pounds! Adhesive backed and super thin so you can stick it anywhere.
Specifications:
- Force Sensor
- Adhesive Backed
- Dimensions:
- Diameter: 0.72" (18.28mm)
- Thickness: 0.0177" (0.45mm)
- Total Length: 2.4" (61mm)
- Max Force Detection: up to 22lbs (up to 10N)
- Actuation Force: 0.1N
- Force Sensitivity Range: 0.1 - 10.02 Newtons
- Single Part Force Repeatability: ± 2%
- Resolution: Continuous
- Part to Part Force Repeatability: ±6%
- Non-Actuated Resistance: 10M W
- Thickness Range: 0.2 - 1.25 mm
- Stand-Off Resistance: >10M ohms Unloaded, unbent
- Switch Travel (Typical): 0.05 mm Depends on design
- Hysteresis: +/- 10%
- Device Rise Time: <3 microseconds
- Long Term Drift: <5% per log(time)
- Operating Temperature (Recommended): -30 - +70 ºC
- Number of Actuations (Life time): 10 Million tested without failure
TS1256
