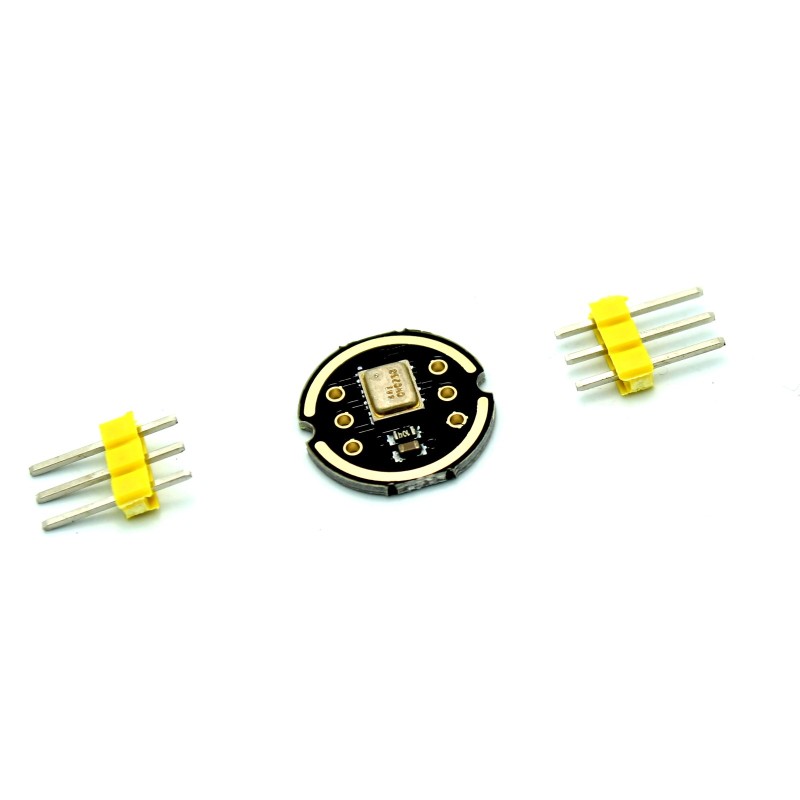

Close Range / Low Volume I2S MEMS Microphone Breakout Board
$8.99
✅SHIPS TODAY
Low Volume Detecting I2S MEMS Microphone Board for high quality sound detection from a close range. Filters out background noise very well for high definition natural sound from a close distance. Digital audio output via I2S serial protocol. 1.8V to 3.3V. Compatible with ESP32 controllers and Raspberry Pis.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features :
- Flat wideband frequency response for high definition natural sound
- Digital output via I2S Serial
- Operating Voltage: 1.8V to 3.3V
- High signal-to-noise ratio meaning it filters out noise well making it a good choice for close range audio pickup while filtering out background noise
- High precision 24-bit data
- Signal to noise ratio: 61 dBA
- Sensitivity: 26 dBFS
- Frequency response: 60 Hz to 15 kHz
- Current consumption 1.4 mA
- PSR: -75 dBFS
- Pinout:
- SCK: Serial data clock for I2S interface
- WS: Serial data word selection for I2S interface
- L/R: Left/Right channel selection.
- When set to low, the microphone outputs a signal on the left channel of the I2S frame.
- When set to high level, the microphone outputs signals on the right channel
- SD: Serial data output of the I2S interface.
- VCC: Input power, 1.8V to 3.3V.
- GND: Ground 0V
- Pin connection for use with ESP32 controllers:
- SCK >> GPIO14
- SD >> GPIO32
- WS >> GPIO15
- L/R >> GND
- GND >> GND
- VDD >> VDD3.3
- Works with ESP32 based microcontrollers and Raspberry Pis.
