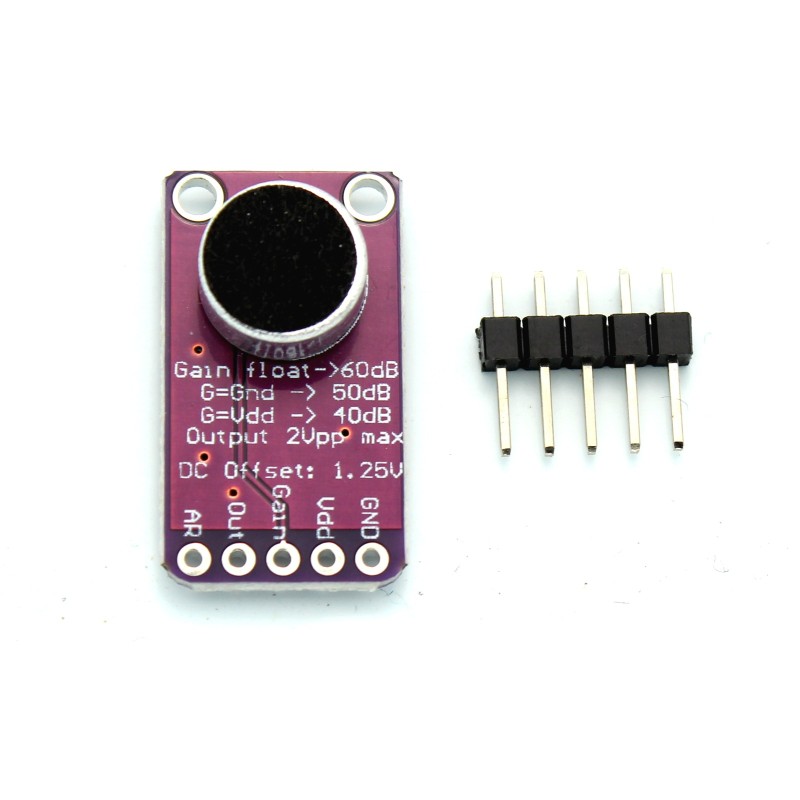

Electret Microphone Amplifier - MAX9814 with Auto Gain Control
$7.99
✅SHIPS TODAY
Add audio input to your arduino projects with this mic + amplifier board. Takes in sound via the onboard mic and amplifies it right on board!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Chipset: Max9814
- Takes in sound via the onboard mic and outputs amplified audio
- Low output noise
- Small package
- High sensitivity
- Default gain: 60dB (can also be adjusted to 40dB or 50dB by connecting the Gain pin to VCC or GND)
- Default attack/release ratio: 1:4000 (can also be adjusted to 1:2000 or 1:500 by connecting the AR pin to VCC or GND)
- 20-20KHz Electret Microphone onboard
- Operating voltage: 3.3V
- Output Type: Analog
- Size: 25 x 9mm x 8mm high
- Arduino Compatible (connect VCC pin on microphone to 3.3V, GND to GND and Out pin to A0)
TS3066
