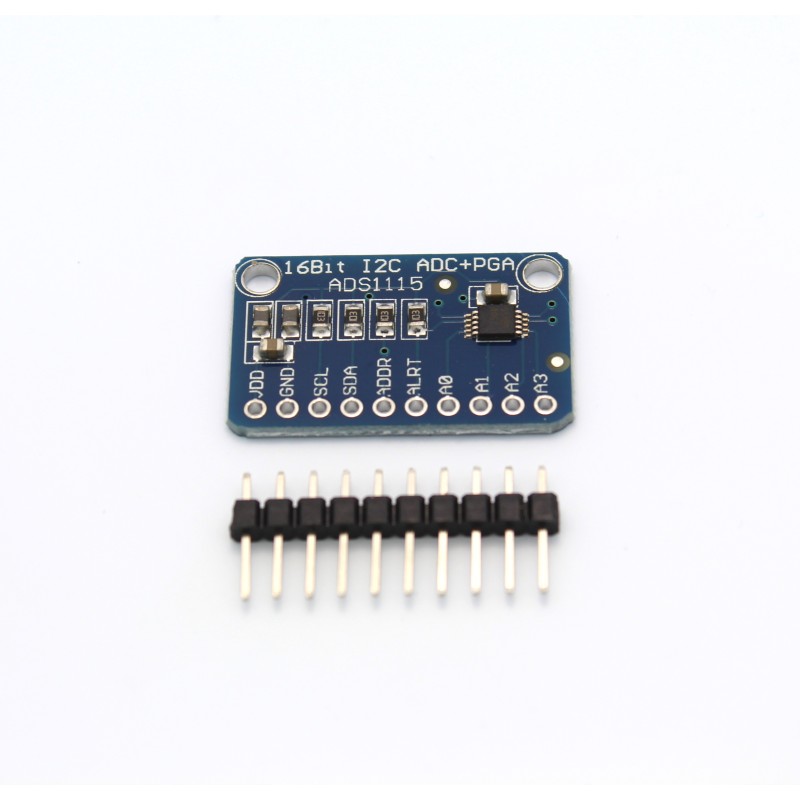

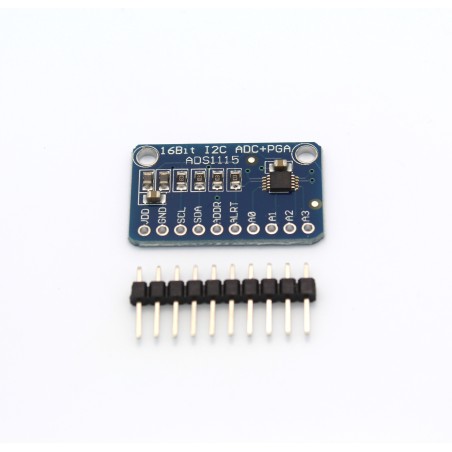

ADS1115 16-Bit ADC - 4 Channel with Programmable Gain Amplifier
$14.49
✅SHIPS TODAY
16 bit Analog to Digital converter with programmable gain for connecting multiple analog sensors to your microcontroller's digital pins.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- ADS1115 Breakout
- Resolution: 16 Bit
- Number of Channels: 4
- Programmable Gain
- Amplifier built-in
- Operating Voltage: 2V to 5.5V DC
- Continuous Current Consumption: 150μA
- Auto Shut-Down feature
- Programmable data rate via an I2C serial
- four 8SPS to 860SPS I2C slave addresses can be chosen if using multiple ADS1115 boards on a single bus.
- Can perform conversions at rates up to 860 samples per second
- Input ranges as low as ± 256mV, allowing both large and small signals to be measured with high resolution
- Input multiplexer provides two differential or four single-ended inputs
- Continuous conversion mode or a single-shot mode which automatically powers down after a conversion and greatly reduces current consumption during idle time
- Operating Temperature: -40C to +125C
