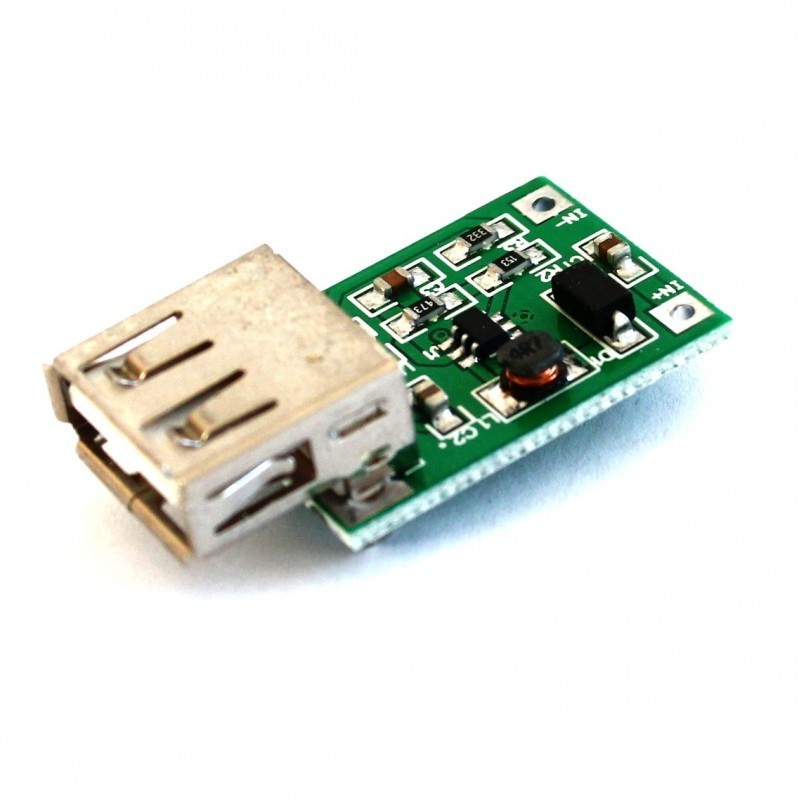

Full-size USB Charger Boost Circuit
$6.90
✅SHIPS TODAY
Use this circuit to charge a USB device from a 0.9V - 5V power source. Useful for making solar powered USB devices and Lipo Battery USB charger circuits.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Charge a USB device from a battery rated anywhere from 0.9V to 5V!
- Input Voltage: 0.9V to 5V DC
- Output voltage :5V to 5.2 V DC via USB
- Output Current:
- 600mA (with a single lipo battery input)
- 500-600mA (with 2 AA batteries as input)
- 200mA (with a single AA battery input)
- Efficiency: Up to 96%
- Switching frequency: 500KHz
- Output ripple: 30mV (MAX) 20M
- Power indicator LED: lights up when connected
- Operating Temperature: -40 to 85 C
- Full load temperature rise: 30 C
- Quiescent Current: 130uA
- Load regulation: ± 1%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Connection: Soldering or Alligator Clips
- Pinout:
- Input: IN + input is power (red wire), IN - ground (black wire)
- Output: Standard USB Port
- Board Dimensions : 2.9 x 1.8 x 0.8mm (excluding USB port)
- Weight: 5g
