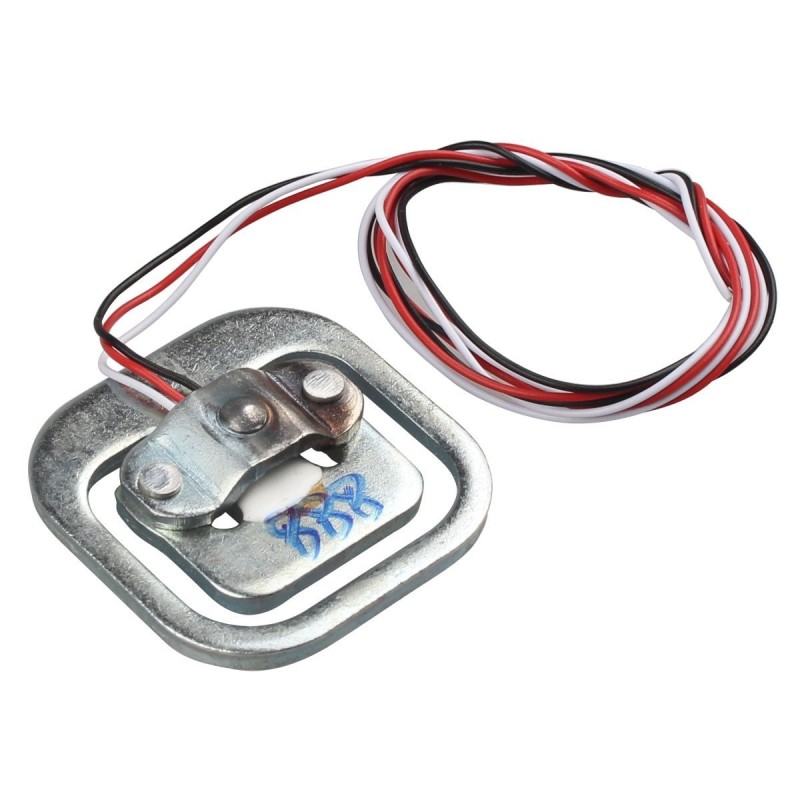

Load Cell - 50kg

Features:

• The internal 1000 ohm half bridge strain gauge, the measuring range is 50kg weighing sensor, half bridge structure.
• Size: 34mm x 34mm
• This sensor can be used in 3 methods:
  1, using a sensor with an external resistance to form a full bridge measurement, range with a single sensor: 50kg. External resistance must be higher.
  2, using two sensors to form a full bridge measurement, the range of two sensors is: 50kgx2=100kg
  3, using four sensors to form a full bridge measurement, the range of four sensors is: 50kgx4=200kg
• Capacity: 50kg
• Comprehensive: 0.10 %F.S
• Output Sensitivity: 1 +/- 15% mV/V
• Non-linearity: 0.05 %F.S
• Repeatability: : 0.05 %F.S
• Hysteresis: 0.05 %F.S
• Zero Output: +/- 0.3 mV/V
• Creep (1 min): 0.1 %F.S
• Zero Drift (1 min): 0.1 %F.S
• Temp Effect on Zero: 0.3 %F.S/10
• Temp Effect on Output: 0.1 %F.S/10
• Input Resistance: 1000 +/- 10 Ohms
• Output Resistance: 1000 +/- 10 Ohms
• Insulation Resistance: greater than 2000M
• Excitation Voltage: 10VDC
• Operating Temperature: -10C to +50C
• Overload Capacity: 150 %F.S
• Working Voltage: 5V
• When measuring, the force should be applied to the outer side of the strain E-shaped portion of the sensor and the outside edges to form a shearing force in the opposite direction (i.e., the middle of the metal beam should bend with the center affixed to the strain gauge. Make sure that there is a shearing force across the center and edges when weight is applied for a proper reading.)
