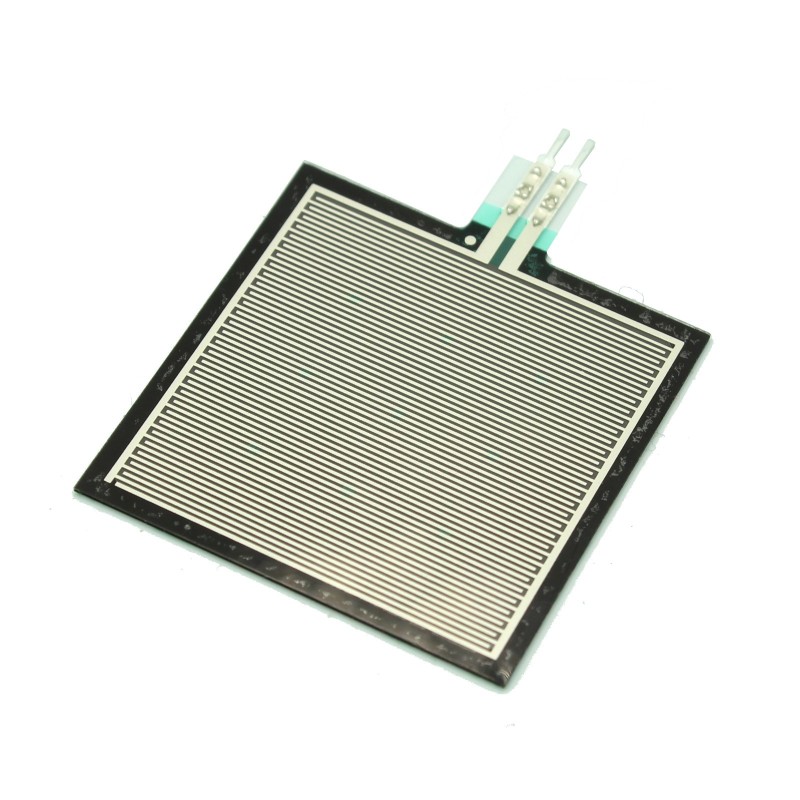

Square FSR: Force Sensor (Arduino Compatible)
$8.95
✅SHIPS TODAY
Measure the amount of force applied on the sensor from 0 to 22lbs. Resistance across the pins decreases as the pressure applied on the sensor increases! Arduino Compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Measure how hard or soft someone presses on a surface with this FSR (Force Sensitive Resistor). As more force is applied on the sensor, the resistance decreases. Measure pressures from 0 to 22 pounds! Adhesive backed and super thin so you can stick it anywhere.
Specifications:
- Force Sensor
- Adhesive Backed
- Dimensions:
- Overall Length: 1.97" (50mm)
- Sensor Area Length and Width: 1.57" (40mm)
- Thickness: 0.0177" (0.45mm)
- Max Force Detection: up to 22lbs (up to 10N)
- Trigger: 20g, default resistance <200kΩ
- Activation time: <0.01s
- Force Sensitivity Range: 0.1 - 10.02 Newtons
- Single Part Force Repeatability: ± 2%
- Resolution: Continuous
- Non-Actuated Resistance: 10M W
- Thickness Range: 0.2 - 1.25 mm
- Stand-Off Resistance: >10M ohms Unloaded, unbent
- Switch Travel (Typical): 0.05 mm Depends on design
- Hysteresis: +/- 10%
- Device Rise Time: 10ms
- Delay: +10%, (RF+-RF-)/FR+,1000g force
- Operating Temperature (Recommended): -30 - +70 ºC
TS3744
