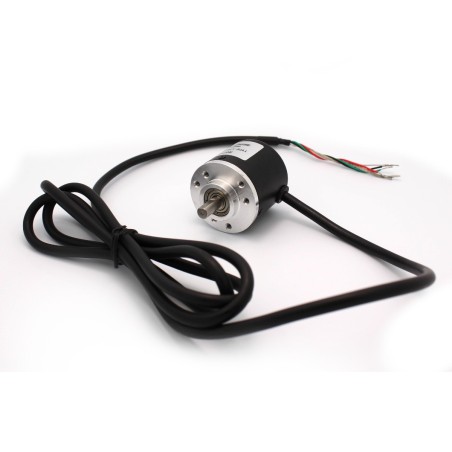

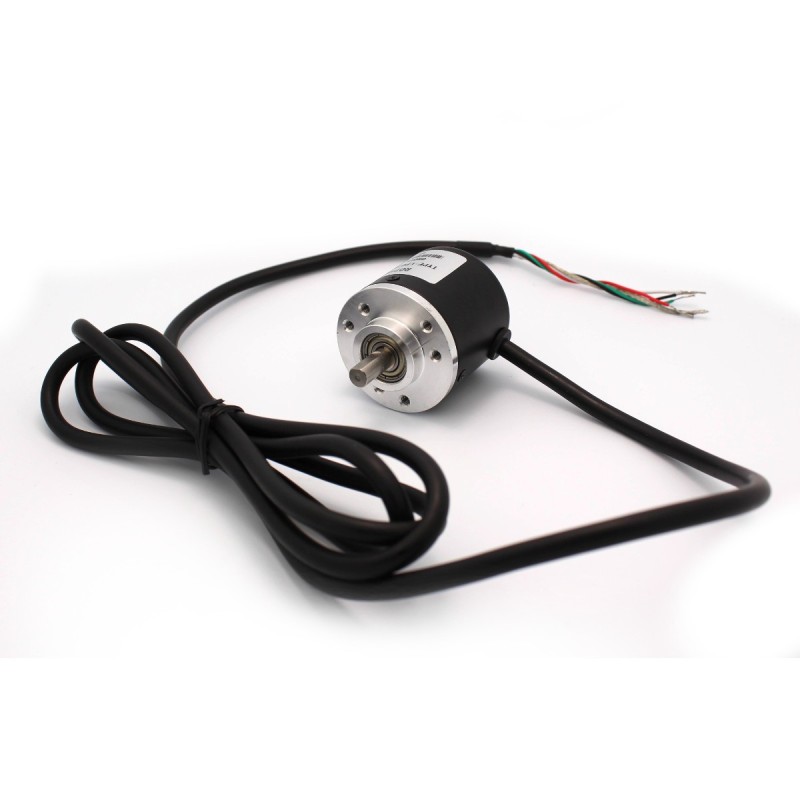

Rotary Encoder 600P/R 5V-24V AB 2 Phase 6mm Shaft
$19.99
✅SHIPS TODAY
Use this rotary encoder to measure the rotational speed, angle and acceleration of a robot.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Single-phase 600 pulses /R
- Two-phase 2400 pulses/R
- Operating Voltage: 5V - 24V DC
- Shaft:
- Diameter: 0.23" (6mm)
- Length: 0.51" (13mm)
- Dimensions: 1.49" x 1.39" (38mm x 35.5mm)
- Output: AB 2 phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
- Maximum mechanical speed: 5000 R per min
- Response frequency: 0-20kHz
- Cable length: 4.9 feet (1.5m)
- Note: AB 2 phase output should not be connected directly to VCC to prevent burning out the output triode
- Pinout:
- Green: Phase A
- White: Phase B
- Red: Vcc
- Black: Ground
TS1784
