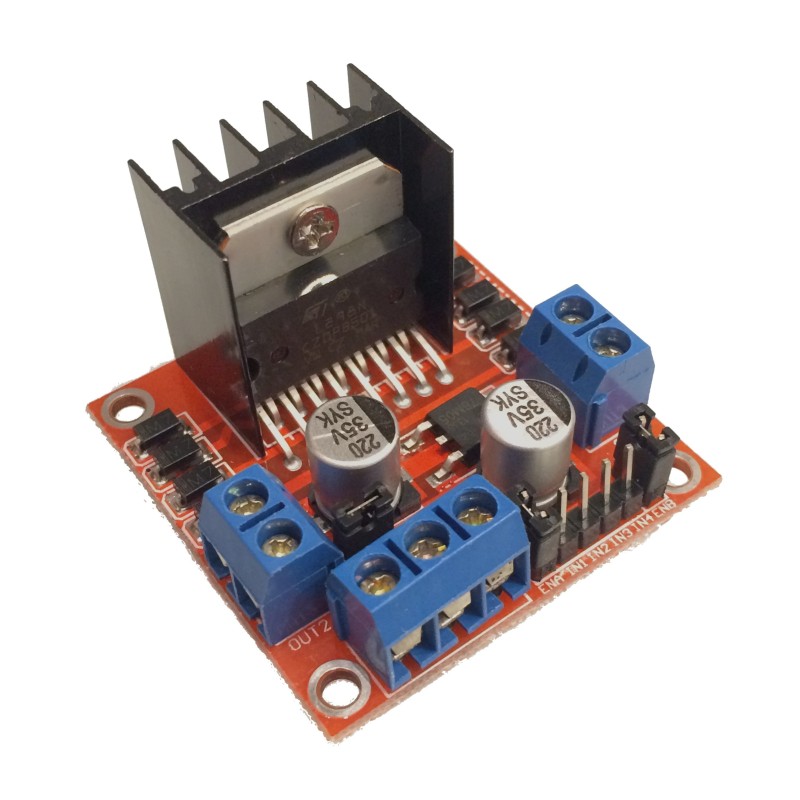

Motor Driver 2A Dual L298 H-Bridge
$7.99
✅SHIPS TODAY
Control up to 2 DC motors or 1 Bi-polar stepper motor with this Dual H-Bridge Module based on the popular L298N.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Chipset: L298N
- Dual H-Bridge Module
- Motor Power Supply Voltage: 5V-35V (Note: Motor Power pin is labelled 12V but can be anywhere in the given range)
- Maximum Motor Driving Current: 2A per bridge
- 5V Voltage Regulator on board so if your motor power supply voltage is 7V-35V, no additional logic power is required.
- Operating Voltage: 5V (for board logic)
- Operating Current: 36mA
- Max power: 25W
- Dimensions: 43 x 43 x 26mm
- Can control 2 bi-directional DC motors simultaneously or one Bi-Polar stepper motor (with 4 wires)
- Arduino & Raspberry Pi Compatible
Useful Reference: http://www.instructables.com/id/Arduino-Modules-L298N-Dual-H-Bridge-Motor-Controll/
Pinout:
- Out 1 & 2: Motor A (or Bi-polar stepper motor coil A)
- Out 3 & 4: Motor B (or Bi-polar stepper motor coil B)
- 12V: Motor Power (Can actually be from 5V-35V, just marked as 12V)
- GND: Ground
- 5V: 5v input (unnecessary if your power source is 7v-35v, if the power source is 7v-35v then it can act as a 5V 0.5A out)
- EnA: Enables PWM signal for Motor A
- In1: Enable Motor A
- In2: Enable Motor A
- In3: Enable Motor B
- In4: Enable Motor B
- EnB: Enables PWM signal for Motor B
TS1616
