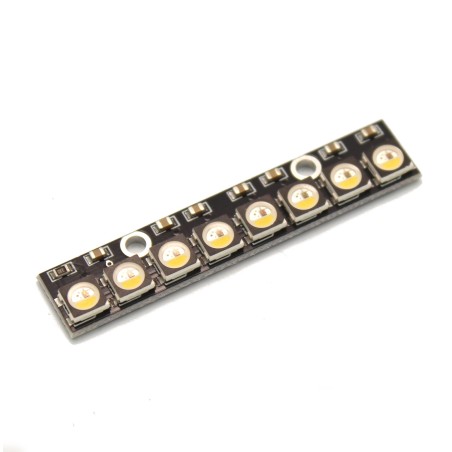

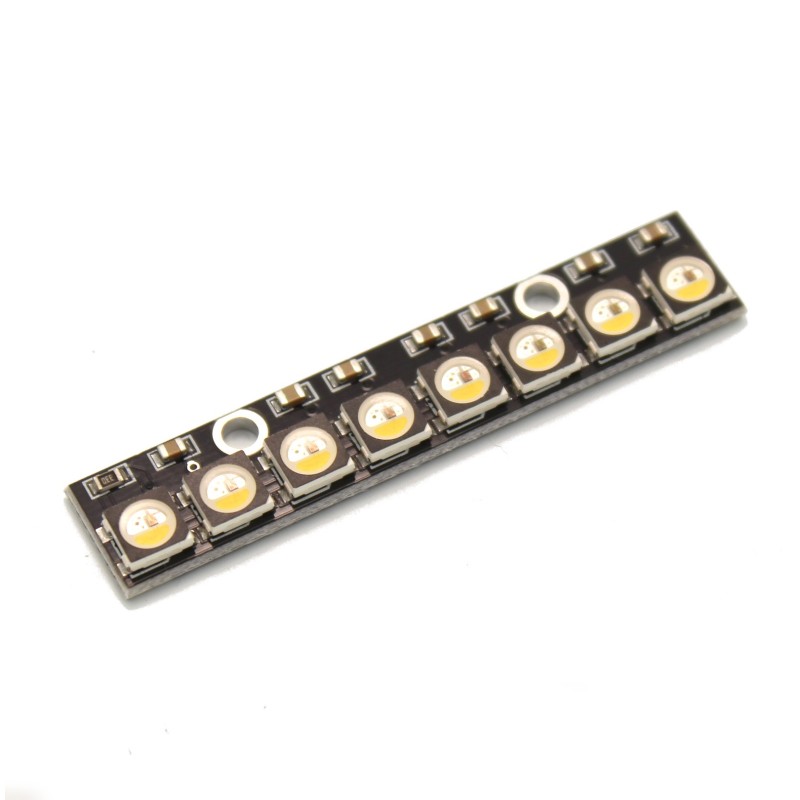

8 x 5050 RGBW LED Stick - Natural White 4500K (Neopixel Compatible)
$7.75
✅SHIPS TODAY
This RGBW LED Stick has 8 Pixels nicely arranged in a line. Each RGBW LED pixel is addressable and includes both RGB and a separate natural white LED to make lighting designs for photography where color temperature is important.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Use this 8 Pixel RGBW LED Stick to add a bar of light to your projects with built in Natural White 4500Ks LEDs. Uses just 1 pin for Input and 1 pin for Output to the next LED stick, ring or strip if you'd like to chain multiple together! Just connect V+ to 5V DC, G to 0V and Data Input to your Arduino or other microcontroller to control the whole ring. Each of the 8 RGB LEDs has a chip inside which allows you to control them when chained one after the other.
Specifications:
- RGBW LED Stick
- Can be set to Natural White (4500K)
- Chipset: SK6812 (Neopixel compatible)
- Number of LEDs: 8
- Dimensions:
- Length: 2" (51.1mm)
- Width: 0.4" (10.22mm)
- Thickness: 0.12" (3.19mm)
- Can be soldered to conductive thread or wire
- Has 2 mounting holes
- Pinout:
- 5V
- GND
- DIN: Data Input
- DOUT: Data Output (connect to the Data Input of the next LED ring or just leave unattached)
- Click here to download the Arduino Sample Code
