RGB and Gesture Sensor APDS-9960
$13.99
✅SHIPS TODAY
Control your projects with the wave of a hand. Touchless gesture sensing as found in the Samsung Galaxy S5! Measures ambient light, color, proximity and gesture detection!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Color and Gesture Sensor
- Control projects with a swipe of your hand!
- Same sensor found in the Samsung Galaxy S5 for gesture detection!
- Measures:
- Ambient Light
- RGB Color
- Touchless Gesture Detection
- Proximity
- Operating Voltage: 3.3V DC
- Range: 4 to 8 inches (100mm to 200mm)
- Built in UV and IR blocking filters
- 4 diodes that are sensitive to different directions
- Communication Protocol: I2C
- I2C Address: 0x39
- Compatible with Arduino & Teensy (using a Logic Level Converter), Orange Pi, Raspberry Pi and any other microcontroller rated at 3.3V. For 5V microcontrollers, you can use this sensor if you couple it with a Logic Level Converter.

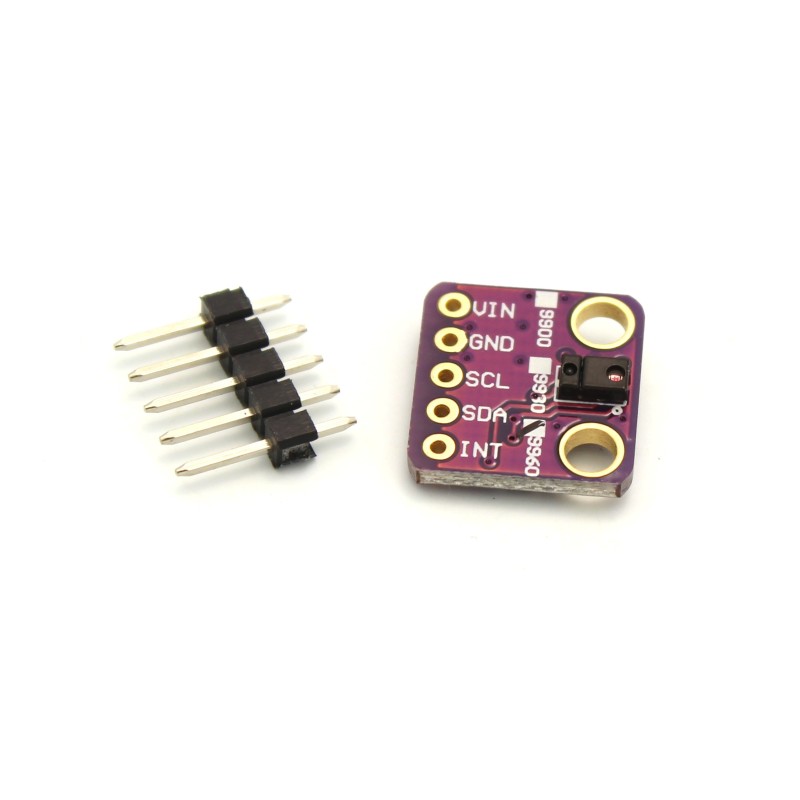

- Pinout:
- VIN: Power
- GND: Ground
- SCL: Clock
- SDA: Data
- INT: Interrupt
Supported Gestures:
- UP: A swipe from the bottom of the board to the top and out of range of the sensor. Make sure that your wrist/arm is not in the sensor's range at the end of the swipe!
- DOWN: A swipe from the top of the board to the bottom and out of range of the sensor.
- LEFT: A swipe from the right side of the board to the left and out of range of the sensor.
- RIGHT: A swipe from the left side of the board to the right and out of range of the sensor.
- NEAR: Object (e.g. hand) starts far above the sensor, moves close to the sensor, hovers for at least 1 second, and moves out of range of the sensor.
- FAR: Object starts near the sensor, hovers for at least 1 second, and then moves up above and out of range of the sensor.
TS2403
