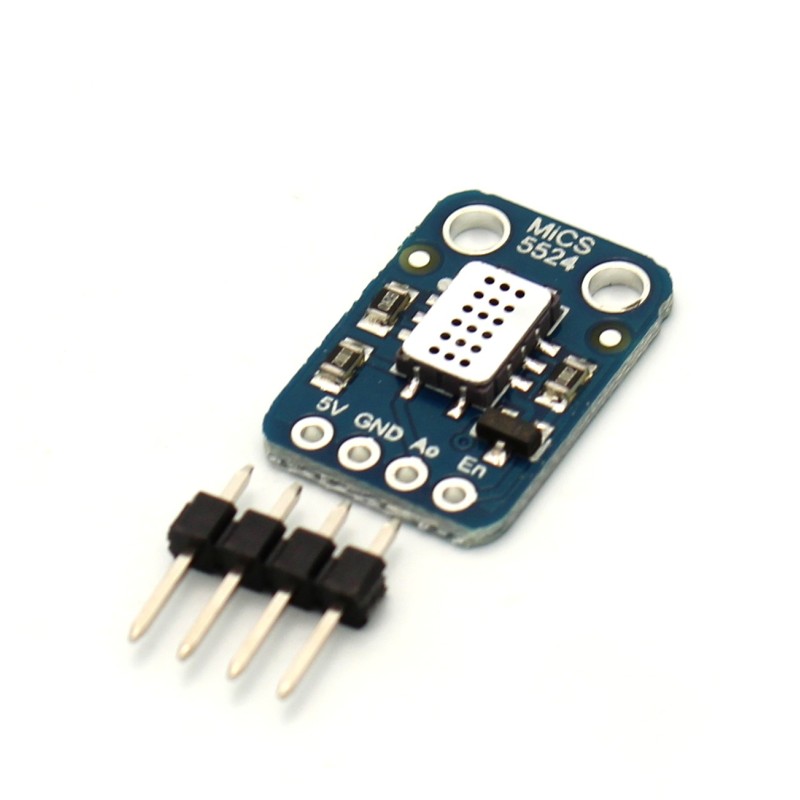

MiCS5524 CO, Alcohol and VOC Gas Sensor

$14.49
✅SHIPS TODAY

This MiCS5524 Gas Sensor detects CO, Ammonia, Ethanol, H2, Methane, Propane and Iso-Butane. The voltage on the output pin increases as the amount of these gases increases. Arduino, Teensy and Photon compatible)

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Features:

  • MiCS5524 CO, Alcohol and VOC Gas Sensor
  • Robust MEMS (Micro Electro Mechanical System) Sensor
  • Operating Voltage: 4.9V to 5.1V
  • Analog Output via Ao pin (voltage increases as amount of any of the detected gases increases)
  • Suitable Uses:
    • Carbon Monoxide Detection
    • Natural Gas Leak Detection
    • Monitoring Air Quality
    • Early Fire Detection
    • Breathalyzer (alcohol detection)
  • Only 4 Pins:
    • 5V: Power
    • GND: Ground
    • Ao: Analog Output (0V to 5V: as the amount of detected gases increases, voltage increases)
    • En: Output Enable (to turn off the sensor for power consumption, send a HIGH 5V signal)
  • Detection ranges:
    • Carbon Monoxide CO: approx 1 to 1000 ppm
    • Ammonia: approx 1 to 500 ppm
    • Ethanol: approx 10 to 500 ppm
    • H2: approx 1 - 1000 ppm
    • Methane: approx 1000++ ppm
    • Propane: approx 1000++ ppm
    • Iso-Butane: approx 1000++ ppm
  • For hobby use
  • Current Draw: 25 to 35mA
  • Works with Arduino, Teensy & Photon boards. Can be used with Raspberry Pi if you also use an Analog to Digital Converter.
