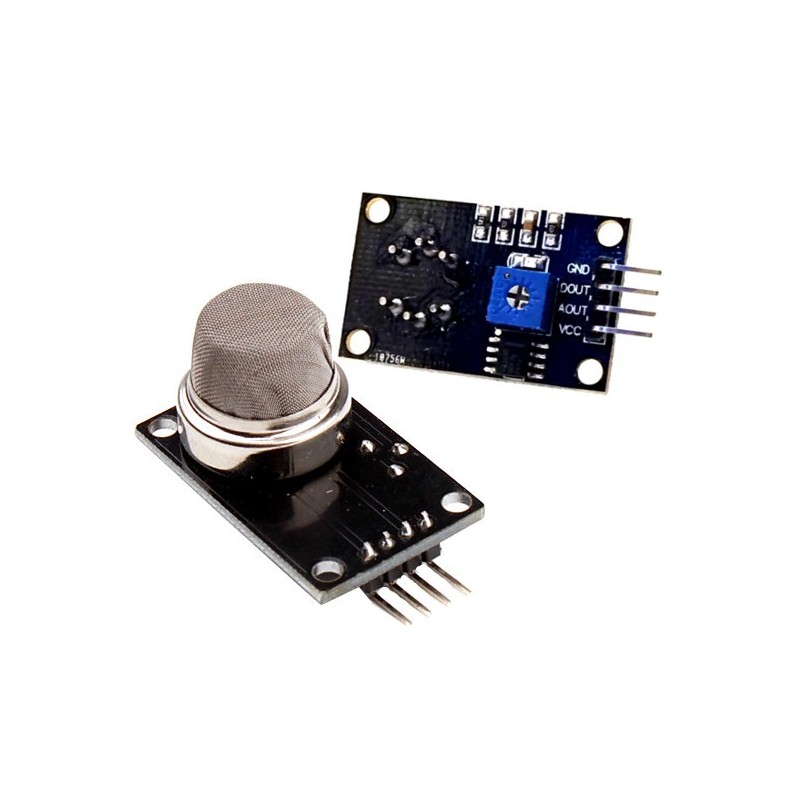

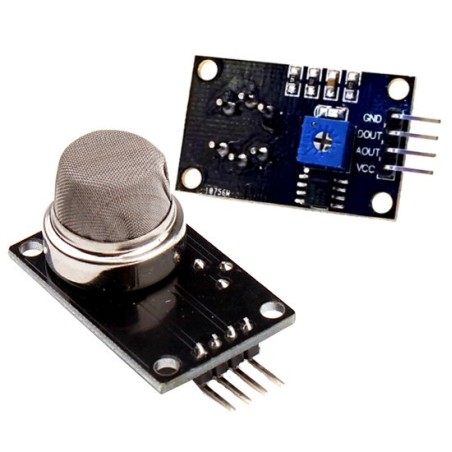

MQ-2 Gas Sensor (Arduino & Raspberry Pi Compatible)
$7.90
✅SHIPS TODAY
Use this Gas Sensor to detect Methane, Butane, LPG, smoke and flammable & combustible gases. Digital & Analog output pins. Arduino & Raspberry Pi Compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This Gas Sensor detects Methane, Butane, Propane, alcohol, hydrogen, LPG & smoke. Flammable & combustible gases are detected by the onboard heater which sends an analog signal that increases as the concentration of flammable gases increases. This module also includes a digital output pin with TTL output. The Potentiometer on board is used to set the Digital Output Setpoint.
Specifications:
- Wide detecting scope
- High sensitivity & stability
- Simple drive circuit
- Type: MQ-2
- Detection Zone: 300 - 10000ppmm
- Characteristic Gas:1000ppmmIso-Butane
- Sensitivity:R in air/Rin typical gas≥5
- Sensitive Resistance:1KΩ to 20KΩ in 50ppm Toluene
- Response Time:≤10s
- Recovery Time:≤30s
- Heating Resistance:31Ω±3Ω
- Heating Current:≤180mA
- Heating Voltage:5.0V±0.2V
- Heating Power: ≤900mW
- Measuring Voltage:≤24V
- Operating Conditions:
- Ambient Temperature:-20℃～+55℃
- Humidity:≤95%RH
- Oxygen Content:21%
- Operating Voltage: 5V
- Compatible with Arduino & Raspberry Pi (for use with Raspberry Pi B or B+ you will need an Analog to Digital Converter Chip)
- Pinout:
- VCC: 5V
- AOUT: Analog Output
- DOUT: Digital Output
- GND: 0V
Click here to download the datasheet.
Reference: Arduino Library
TS-556
