Arcade Joystick & Buttons USB Interface Kit

Features:

• This USB Interface Kit works with arcade joysticks and arcade buttons with 4.8mm terminals.

• HAPP Style Joysticks & Push Buttons work well with this kit.
• Make your own DIY arcade machine controlled via USB

• You just need simply connect your arcade controls into the interface board with the included wires, And then plug the encoder into your computer / Raspberry Pi's USB Port to enjoy your arcade games on classic controls.

• Supports all Windows systems including Windows XP, Windows 7, Windows 8, Windows 10, etc., Linux and Raspberry Pi 0/1/2/3 with RetroPi!
• Compact design
• Zero Delay Encoder works with MAME, RetroPi and PC
• USB to Jamma AC425+
• Encoder board dimensions: 8.5cm X 3.5cm X 1cm

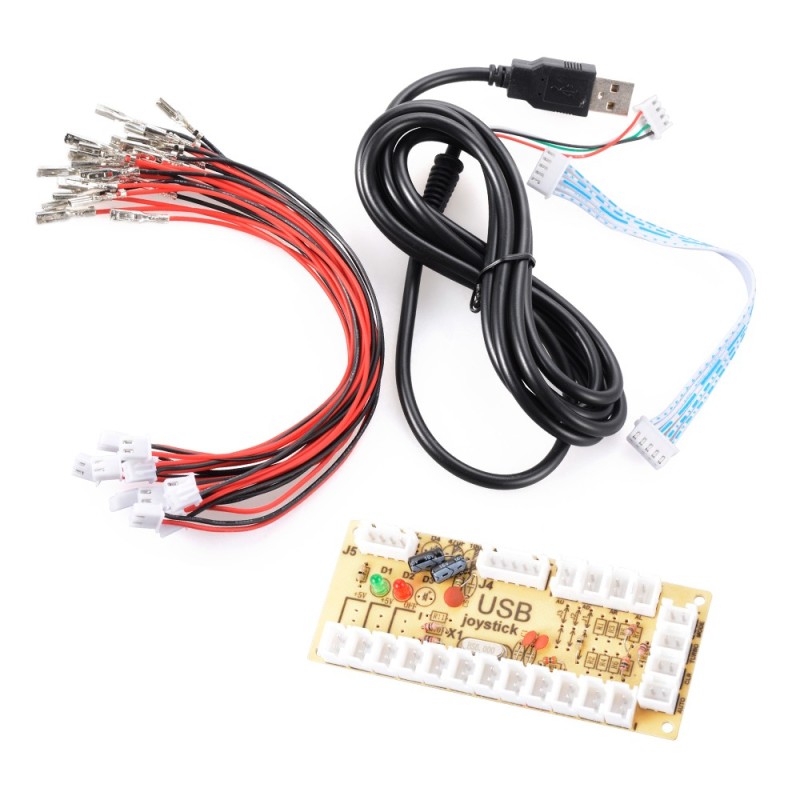

• Includes:
  • USB Interface Encoder Board
  • USB Interface Cable
  • 13 Cables with 4.8mm female terminal connectors for Arcade Buttons
  • 4 4.8mm 2 Pin Cables for Joystick

Setup Instructions:

• Make sure the AU, AD, AR and AL are connected to your Joystick's up, down, right and left respectively.
• Next, please connect the USB cable to your Windows computer
• Press the Windows + R key to bring up the run prompt and type joy.cpl or go to Start-> Settings and follow the prompts as shown below:

• Right-Click the Generic USB Joystick in Devices and Printers and click on properties.

• Now move the joystick around and look for the changes on the screen here. You can configure the inputs from this window as well.
