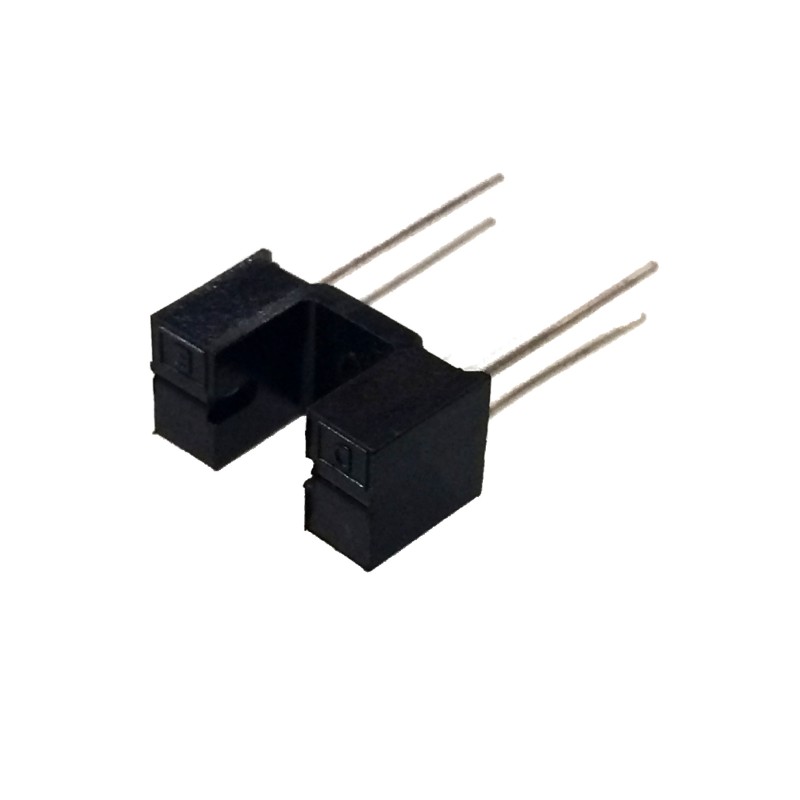

Photo Interrupter
$1.99
✅SHIPS TODAY
Detect when something passes between the 2 uprights and breaks the IR beam. Used for dispensing, as an optical limit switch and object detection.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
When the beam between the 2 uprights is broken, the emitter and collector (2 right pins) will become disconnected. The 2 left pins are power the internal Infrared LED (IR Diode) and should be connected to a voltage of 1.2 - 1.6V.
Specifications:
- IR Diode Forward Voltage: 1.2V - 1.6V
- Reverse Current: 100uA
- IR Diode Continuous Forward Current: 60 mA
- IR Diode Reverse Voltage: 5 V
- Transistor Collector Current 20 mA
- Transistor Power Dissipation 75 mW
- IR Diode Peak Forward Current (@ Pulse Width = 10μS, 300pps): 1A
- Diode Power Dissipation: 100mW
- Phototransistor Collector-Emitter Voltage: 30V
- Phototransistor Emitter-Collector Voltage: 5V
TS-913
