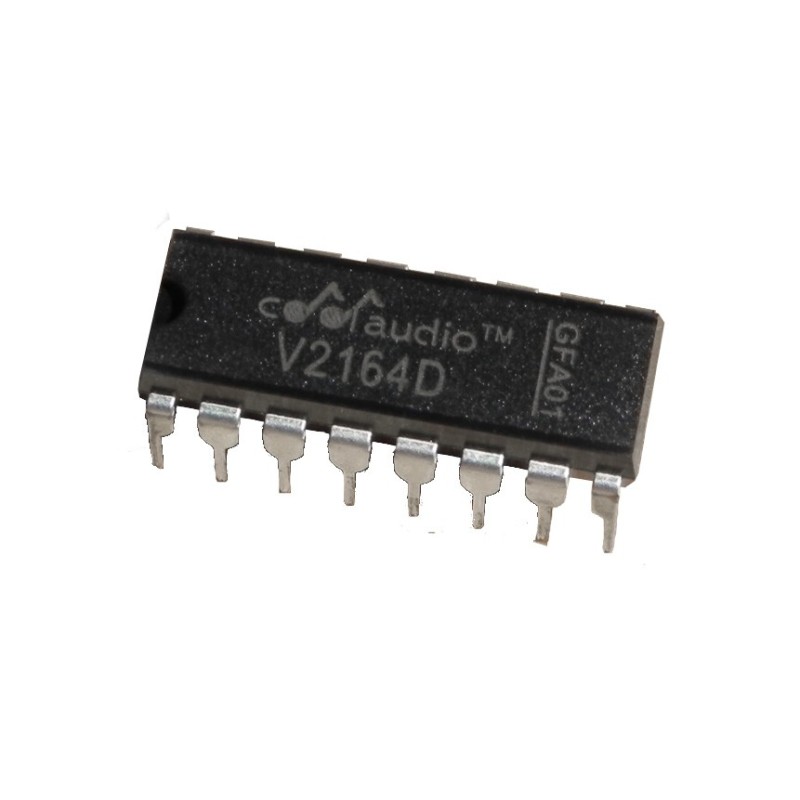

V2164 Quad VCA (Voltage Controlled Amplifier)
$9.75
✅SHIPS TODAY
The V2164 contains four independent VCAs (Voltage Controlled Amplifiers) in a single package. Useful for controlling volume via circuit.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The V2164M/D contains four independent voltage controlled amplifiers(VCAs) in a single package. High performance(100 dB dynamic range, 0.02% THD) is provided at a very low-cost-per-VCA, resulting in excellent value for cost sensitive gain control applications. Each VCA offers current input and output for maximum design flexibility, and a ground referenced –33 mV/dB control port.
Features:
- Four High Performance VCAs in a Single Package
- Supply Voltage: ±4 V to ±18 V DC
- 0.02% THD
- No External Trimming
- 120 dB Gain Range
- 0.07 dB Gain Matching (Unity Gain)
- Class A or AB Operation
- Operating Temperature: –40°C to +85°C
- Common Applications:
- Remote, Automatic, or Computer Volume Controls
- Automotive Volume / Balance/Faders
- Audio Mixers
- Compressor / Limiters / Compandors
- Noise Reduction Systems
- Automatic Gain Controls
- Voltage Controlled Filters
- Spatial Sound Processors
- Effects Processors
