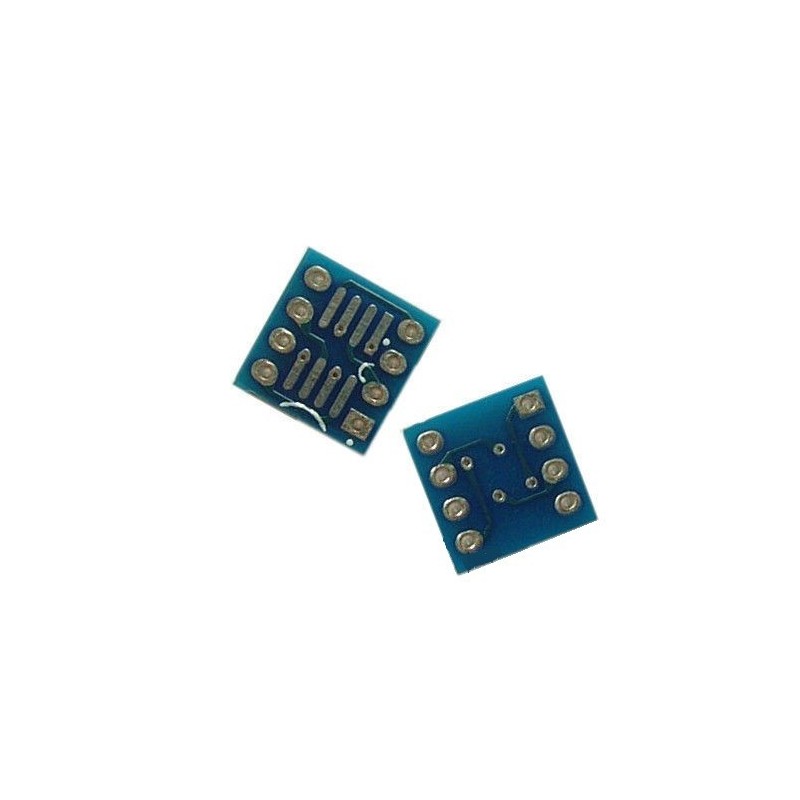

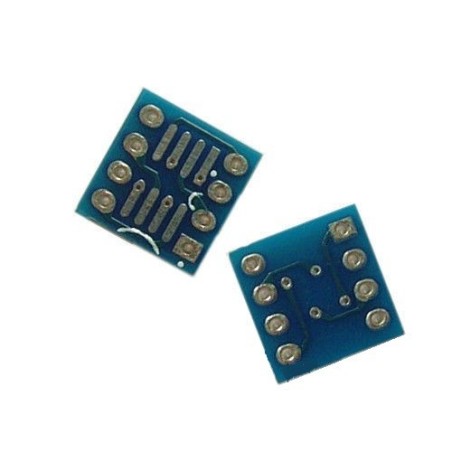

SMT to DIP Breakout: SO-8 to 8-pin DIP Adapter
$2.99
✅SHIPS TODAY
Plug your SMT surface mount chips into your projects easily with this SMT to DIP adapter. Solder the SO-8 chip onto the adapter plate for standard DIP spacing.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Use surface mount chips in your breadboard and perfboard projects
- Ideal for prototyping with SMT chips
- Converts SO-8 chips to DIP style pin spacing which will fit in standard 0.3" wide DIP Sockets.
- SMT Details: 8 Pin SOIC (SO-8)
- DIP Details: 0.1" Spacing (Standard Breadboard and Perfboard spacing)
- Center-to-center spacing of the pads: 0.05" (1.27 mm)
- Accommodates both EIAJ (0.21"/5.3mm wide) and the narrower JEDEC (0.15"/3.8mm wide) devices
- PCB Dimensions:
- L x W: 0.500" x 0.475"
- Thickness: 0.031"
- These can be soldered to wires, a perfboard or header pins such as Breakaway Male Header Pins
TS1540
