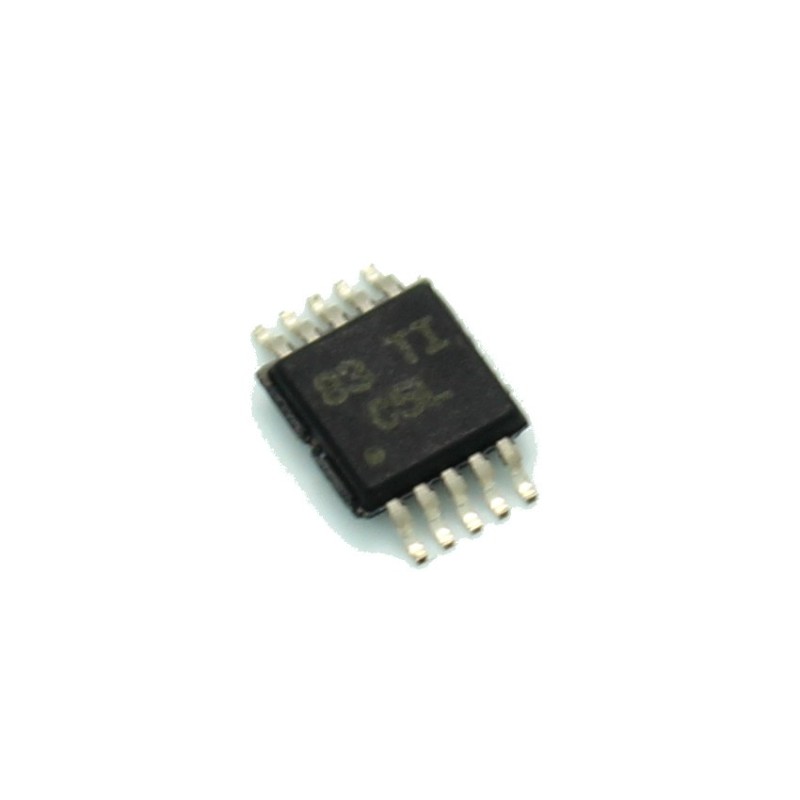

DRV2605L Haptic Motor Controller

The DRV2605L device is a low-voltage haptic driver that includes a haptic-effect library and provides a closed-loop actuator-control system for high-quality tactile feedback for ERM and LRA. This schema helps improve actuator performance in terms of acceleration consistency, start time, and brake time and is accessible through a shared I²C compatible bus or PWM input signal.

The DRV2605L device offers a licensed version of TouchSense 2200 software from Immersion which eliminates the requirement to design haptic waveforms because the software includes over 100 licensed effects (6 ERM libraries and 1 LRA library) and audio-to-vibe features.

Additionally, the real-time playback mode allows the host processor to bypass the library playback engine and play waveforms directly from the host through I²C.

Features:

• Haptic actuator type: ERM, LRA
• Features Integrated Haptic Effects, Smart Loop
• Input signal PWM, Analog, I2C
• Vs (Min) (V) 2
• Vs (Max) (V) 5.2
• Output voltage (Max) (V) 5.5
• Vout (Max) (V p-p) 10.4
• Iq (Typ) (mA) 0.5
• Shutdown current (Typ) (uA) 4
• Startup time (ms) 0.7
• Operating temperature range (C) -40 to 85
