NOR Gate: 74HC02
$1.99
✅SHIPS TODAY

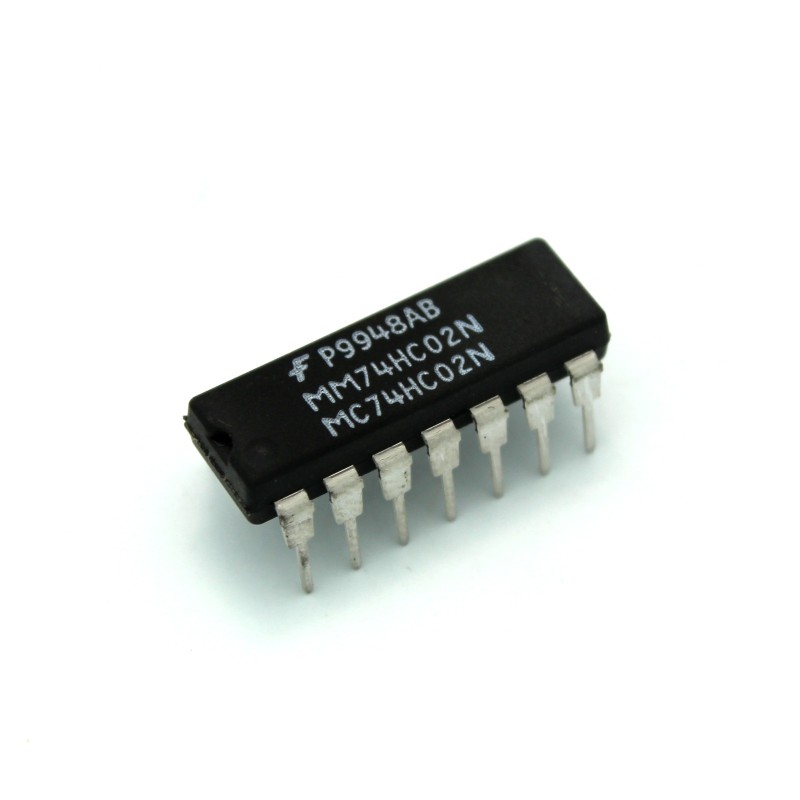

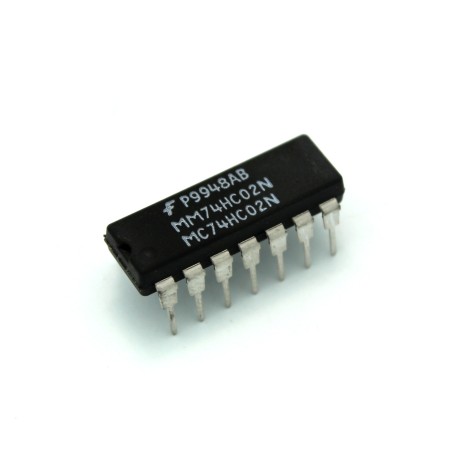

This chip includes 4 basic digital logic NOR gates. Each NOR gate takes in 2 inputs on the left side of the chip and gives out a LOW output on the right side of the chip if any of the inputs are HIGH.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Specifications:
- Basic NOR Gate IC
- Operating Voltage: 2V - 6V
- 4 2-input NOR Gates on-chip
- Pinout:
- NOR GATE Number 1:
- Pin 1 & 2: Inputs
- Pin 3: Output
- NOR GATE Number 2:
- Pin 4 & 5: Inputs
- Pin 6: Output
- NOR GATE Number 3:
- Pin 9 & 10: Inputs
- Pin 8: Output
- NOR GATE Number 4:
- Pin 12 & 13: Inputs
- Pin 11: Output
- Power:
- Pin 14
- Ground:
- Pin 7
