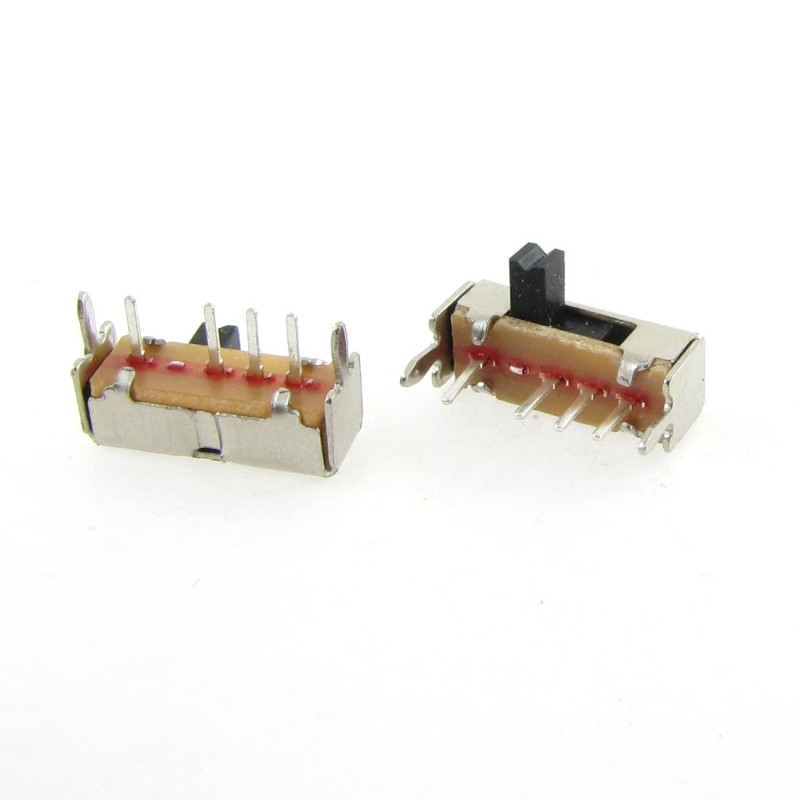

3 Position Slide Switch 1P3T
$3.99
✅SHIPS TODAY
3 Position Slide Switch 1P3T
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Number of Positions: 3
- Slide Switch
- Widely used in the electronics, sound equipment, fax machines, test instruments, or other low voltage circuit electronic devices
- This Slide Switch has 2mm spaced pins with large mounting tabs on the ends to easily attach to your circuit boards
- ON-ON-ON type 3 Positions
- 1P3T
- Mounting type: 90 degree
- Number of Pins: 4 Pin
- Max Current: 0.5A
- Max Voltage: 50V DC
- Terminal Length 3mm/ 0.12"
- Contact Resistance 30mΩ Max
- Insulation Resistance 100mΩ Min at 500V DC
- Withstand Voltage AC 500V for 1 min
- Pin Pitch 2mm / 0.079" & 4mm / 0.157"
- Main Body Size(not include Pins & Knob) 13 x 4.5 x 4mm / 0.51" x 0.18" x 0.16"(L*W*H)
- Overall Size 13 x 7 x 7mm/ 0.51" x 0.28" x 0.28"(L*W*H)
- Knob Size 1.5 x 1.5 x 3mm / 0.06" x 0.06" x 0.12"(L*W*H)
- Material(External) Plastic, Metal
- Main Color Silver Tone, Black
TS1996
