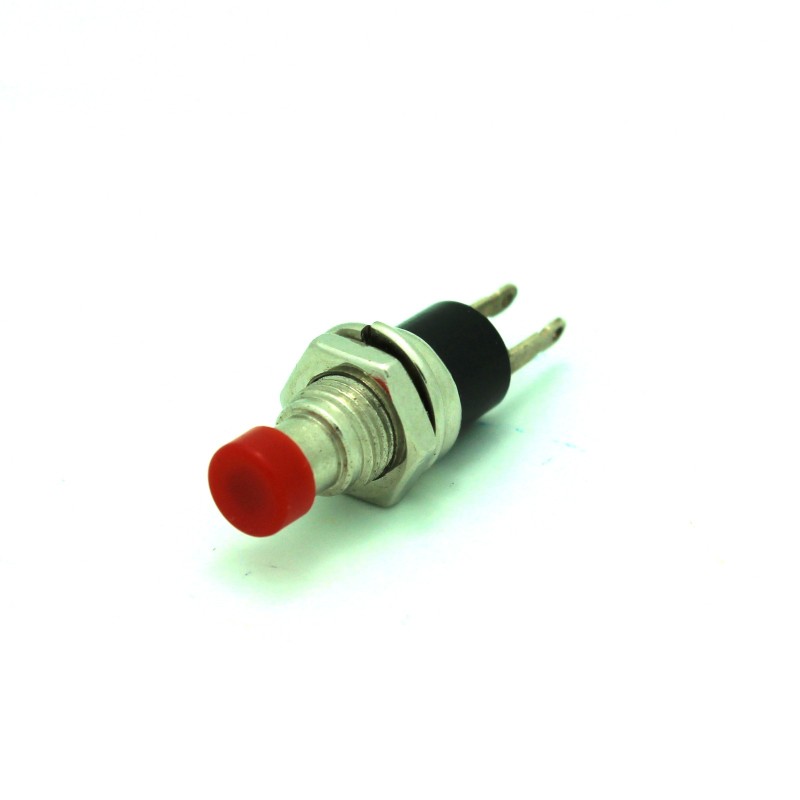

Metal Red Panel Mount SPST-NO Momentary Push Button Switch
$1.49
✅SHIPS TODAY
Metal Red Panel Mount SPST-NO Momentary Push Button Switch. Just drill a hole and push this metal button through. Red 6mm cap.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This Tactile Button is popular for projects where you need a simple little button. What makes these buttons so great is that you can use them as they are, or add button caps to give yourself varying button colors or sizes. Dimensions: 12 x 12mm
Specifications:
- Contact Type : Momentary Contact (this means, when you press the button the circuit is closed, otherwise it is open)
- Current Rating : up to 500mA (0.5A)
- Voltage Rating : up to 250VAC
- Contact Resistance: 100mΩ max
- Electrical Life: ≥ 10,000 Cycles
- Function: OFF-(ON)
- Dielectric strength: 500VAC 1 minute
- Operating Temperature: -25℃~+85℃
- Insulation Resistance: 100mΩ min (500VDC)
- Red Cap Diameter: 6mm
TS4200
