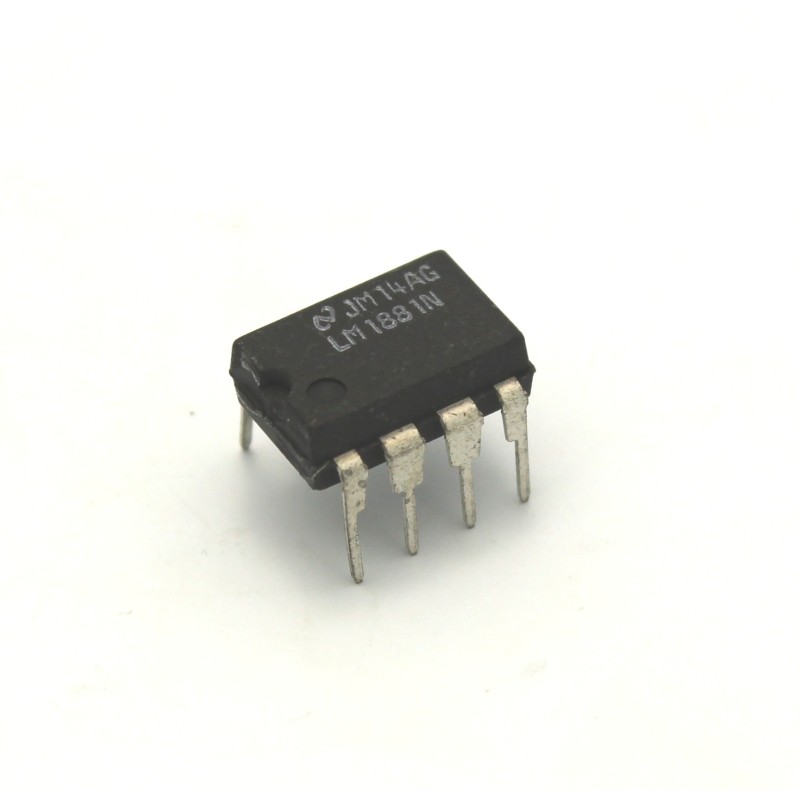

LM1881 Video Sync Separator
$4.49
✅SHIPS TODAY
LM1881 Video sync separator that extracts timing information including composite and vertical sync, burst or back porch timing, and odd and even field information from standard negative going sync NTSC, PAL and SECAM video signals with amplitude from 0.5-V to 2-V p-p.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- LM1881 Video Sync Separator Chip
- Extracts timing information from standard negative going sync NTSC, PAL and SECAM video signals
- composite and vertical sync
- burst or back porch timing
- odd and even field information
- Horizontal Scan Rates to 150 kHz
- AC Coupled Composite Input Signal
- >10-kΩ Input Resistance
- <10-mA Power Supply Drain Current
- Operating Voltage: 5V to 12V
- Power: 25mW
- Operating Temperature: 0C to 70C
- Package: 8 pin DIP
TS2378
