HEF4543B BCD to 7-segment latch/decoder/driver

$3.99
✅SHIPS TODAY

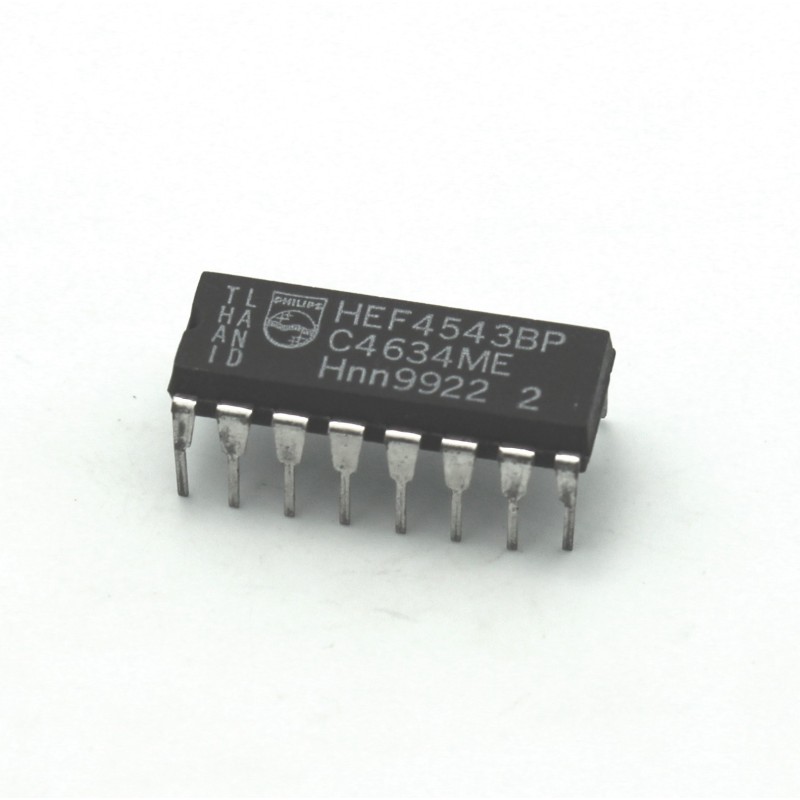

HEF4543B BCD to 7-segment latch / decoder / driver chip

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Features:

  • HEF4543B
  • For 7 Segment LED displays
  • Four address inputs (D0 to D3)
  • Active LOW latch enable input (LE)
  • Active HIGH blanking input (BL)
  • Active HIGH phase input (PH)
  • Seven buffered segment outputs (Qa to Qg)
  • BCD to 7-segment latch/decoder/driver
  • Fully static operation
  • 5V, 10V, and 15V parametric ratings
  • Standardized symmetrical output characteristics
  • Specified from -40C to +85C
  • Complies with JEDEC standard JESD 13-B
  • Package Type: DIP
TS2537
9 Items
