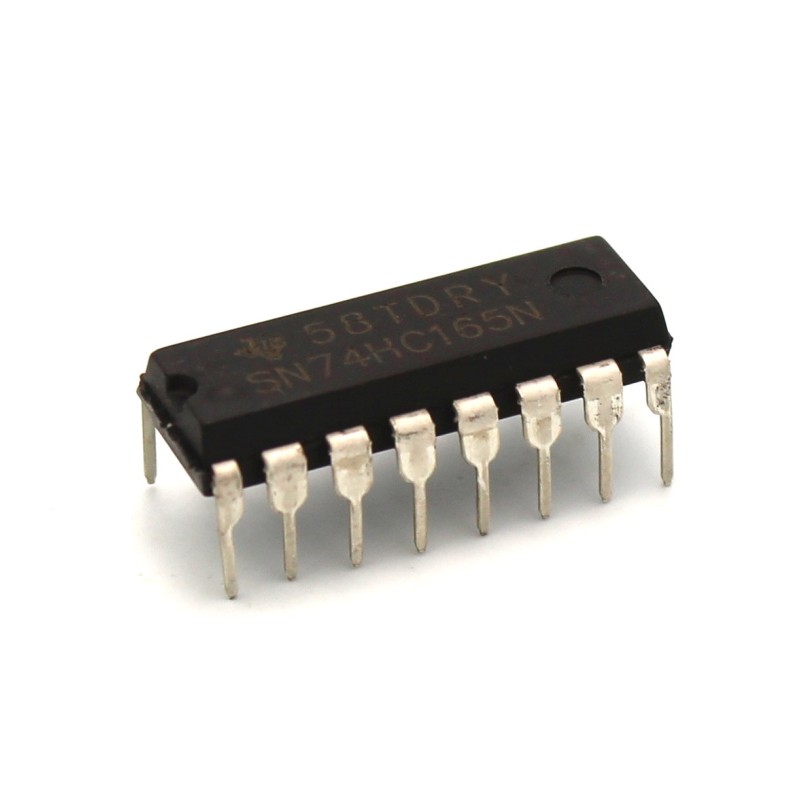

8 Bit Parallel In/Serial Out Shift Register: 74HC165

This 8 Bit Parallel In and Serial Out Shift Register gives you the ability to collect 8 bits of data sent in simultaneously on the 8 Input pins and feed them out one at a time via the Serial Output Pins. This is most useful for using 1 pin of a microcontroller to collect data from 8 objects at once. 8 signal values come in simultaneously on the 8 input pins, they are latched into the chip and sent to the output pin one at a time via serial.

Specifications:

• 8 Bit Parallel In, Serial Out Shift
• Converts Parallel Data input from 8 pins to serial output
• Operating Voltage: 2V - 6V
• Outputs Can Drive Up to 10 LSTTL Loads
• Low Power Consumption, 80uA Max
• Typical Tpd = 13 ns
• 4 mA Output Drive at 5V
• Low Input Current: 1uA Max
• Complementary Outputs
• Direct Overriding Load (Data) Inputs
• Gated Clock Inputs
• Number of Pins: 16
• Operating Temperature Range: -40 to 85 C
• Manufacturer Part Number: SN74HC165N
