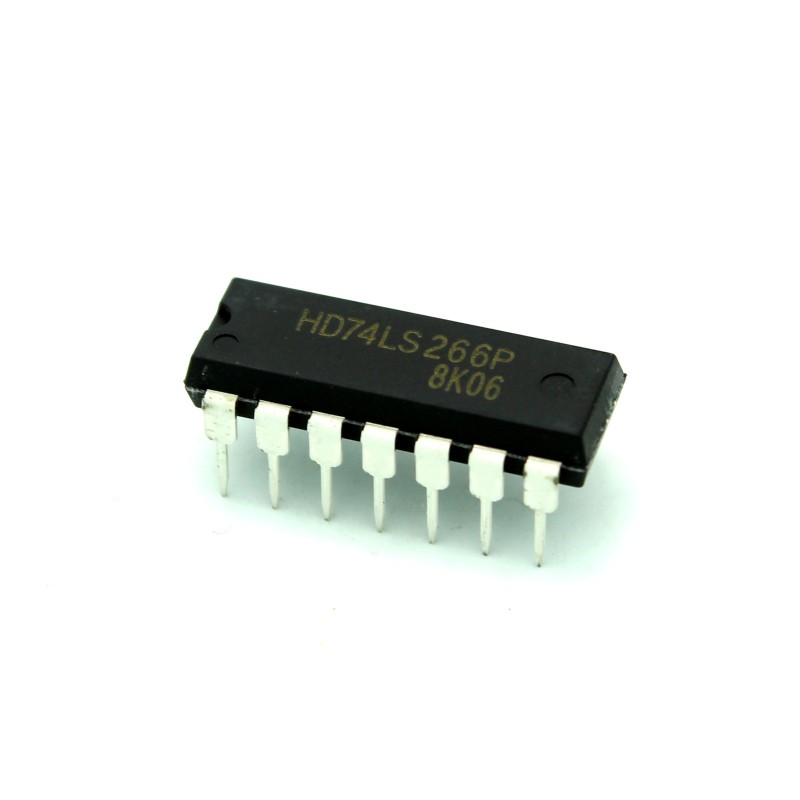

XNOR Gate: 74LS266
$1.99
✅SHIPS TODAY
This chip includes 4 basic digital logic XNOR gates. Each XNOR gate takes in 2 inputs and gives out a HIGH output if input 1 OR input 2 is are the same (both HIGH or both LOW) but not one or the other.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Specifications:
- Basic XNOR (Exclusive NOR) Gate IC
- Operating Voltage: 2V - 6V
- 4 2-input XOR Gates on-chip
- Pinout:
- XNOR GATE Number 1:
- Pin 1 & 2: Inputs
- Pin 3: Output
- XNOR GATE Number 2:
- Pin 5 & 6: Inputs
- Pin 4: Output
- XNOR GATE Number 3:
- Pin 8 & 9: Inputs
- Pin 10: Output
- XNOR GATE Number 4:
- Pin 12 & 13: Inputs
- Pin 11: Output
- Power:
- Pin 14
- Ground:
- Pin 7
- XNOR GATE Number 1:
Click here to download the datasheet.
