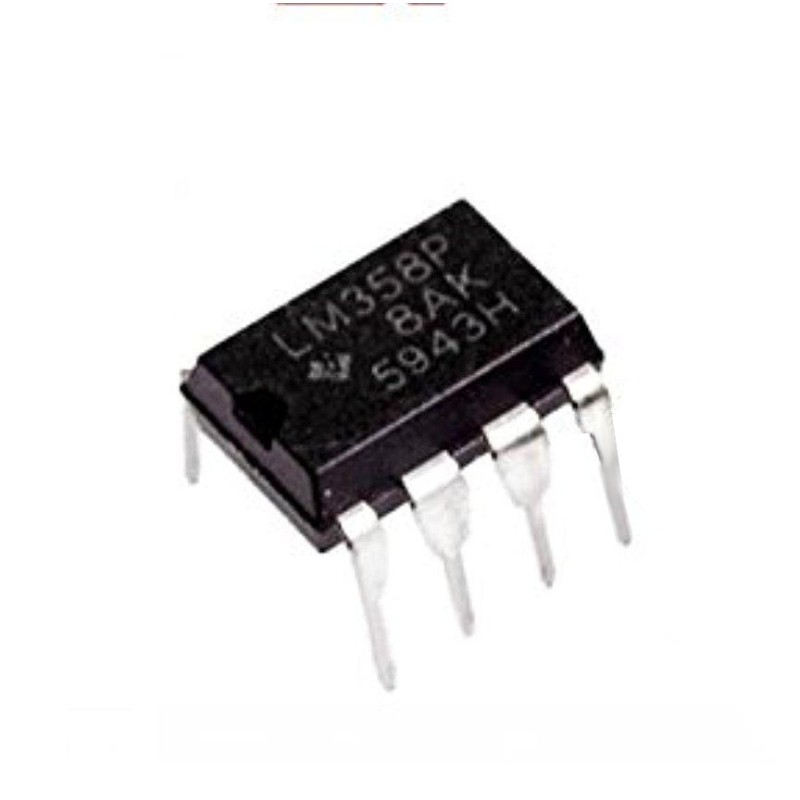

LM358 Op Amp
$2.49
✅SHIPS TODAY
The LM358 is a Dual Op Amp which can work from 3V to 32V (single supply) or ±1.5 V to ±16 V (dual supplies) and has a large DC voltage gain of 100dB.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Operating Voltage:
- Single Supply: 3 V to 32 V
- Dual Supplies: ±1.5 V to ±16 V
- Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA Typical
- Wide Unity Gain Bandwidth: 0.7 MHz
- Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
- Low Input Bias and Offset Parameters
- Input Offset Voltage: 3 mV Typical A Versions: 2 mV Typical
- Input Offset Current: 2 nA Typical
- Input Bias Current: 20 nA Typical A Versions: 15 nA Typical
- Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V
- Open-Loop Differential Voltage Gain: 100 dB Typical
- Internal Frequency Compensation
