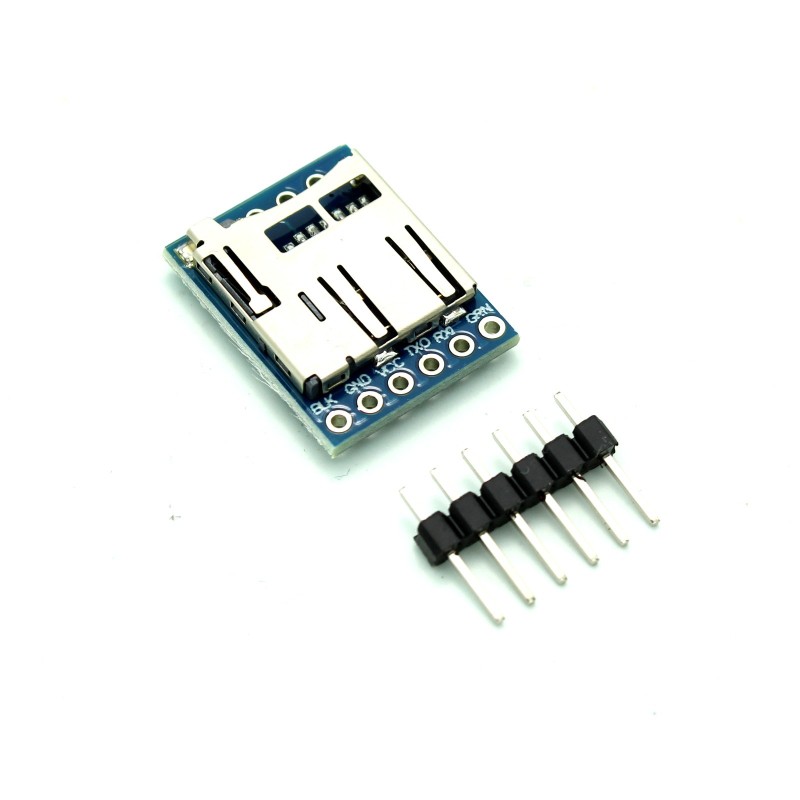

OpenLog Open Source Data Logger
$14.95
✅SHIPS TODAY
OpenLogger Open Source Data Logger logs all the serial data that your project generates, for scientific or debugging purposes.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- OpenLog open source data logger
- Supports microSD cards up to 32GB
- Can log serial data on a serial bus to store all the serial data that your project generates
- Useful for scientific or debugging purposes.
- Uses an ATmega328 running at 16MHz
- Draws approximately 2-3mA in idle (nothing to record) mode
- During a full record OpenLog can draw 10 to 20mA depending on the microSD card being used.
- All data logged by the OpenLog is stored on the microSD card.
- Any 512MB to 32GB microSD card should work.
- OpenLog supports both FAT16 and FAT32 SD formats.
Specifications:
- Power Supply Voltage: 3.3V-12V (Recommended 3.3V-5V)
- Simple command interface
- Configurable baud rates (up to 115200bps)
- Preprogrammed ATmega328 and bootloader
- Four SPI pogo pins
- Two LEDs indicate writing status
- Current: 2mA idle, 6mA at maximum recording rate
- Logic Level: 3.3V / 5V
- Supports Micro SD cards and Micro SDHC high-speed FAT16/32 cards up to 32GB
- Communication Protocol: SPI and FTDI (SPI for reprogramming the Atmega328 bootloader and FTDI for data transmission)
- Primary interface: FTDI that can be connected directly to an Arduino to send data over a serial connection to the OpenLog
- Micro SD card port on board
- RXI Input: 2.0V-3.8V
- TXO Output: 3.3V
- 2 Status LEDs:
- Right LED: Indicator LED toggles on/off when a new character is received. This LED blinks when Serial communication is functioning.
- Left LED - LED blinks when the SPI interface for loading the Atmega382 bootloader is active. You will see it flash when the OpenLog records 512 bytes to the microSD card.
- Pinout:
- BLK: Ground 0V
- GND: Ground 0V
- VCC: 3.3V-12V (Recommended 3.3V-5V)
- TXO: Transmit Output
- RXI: Receive Input
- GRN: Data Reset
- How to connect to FTDI Basic: (See diagram in images)
- OpenLog BLK → FTDI Basic GND
- OpenLog GND → FTDI Basic GND
- OpenLog VCC → FTDI Basic 3.3V
- OpenLog TXO → FTDI Basic RXI
- OpenLog RXI → FTDI Basic TXO
- OpenLog GRN → FTDI Basic DTR
