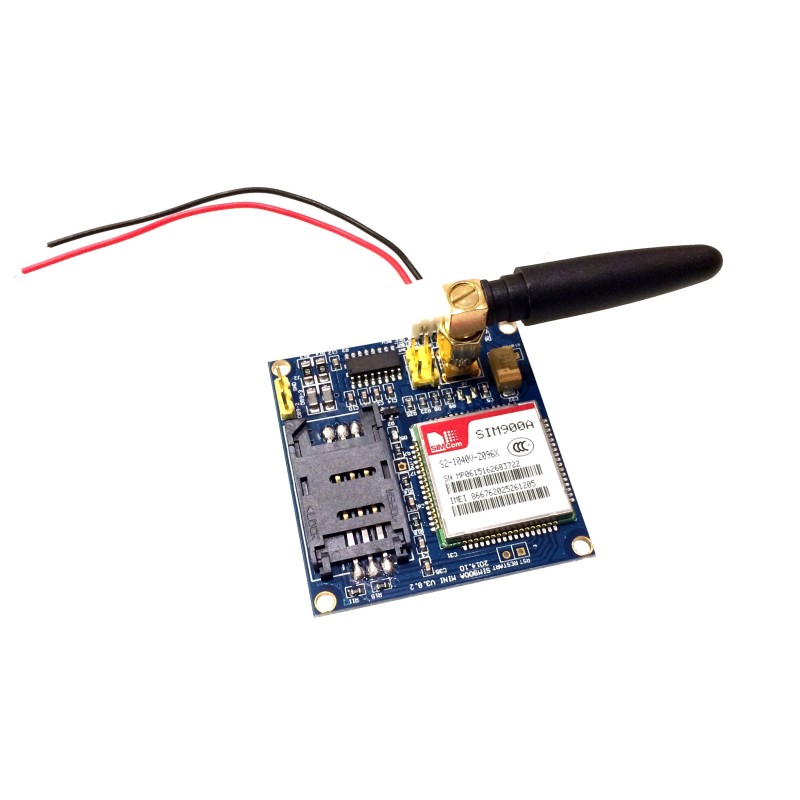

SIM900A GSM/GPRS Module (Raspberry Pi & Arduino Compatible)

This SIM900 GSM / GPRS Module is useful for using a cell phone network to talk to your microcontrollers wirelessly. Just wire it up to your microcontroller and you'll have quad-band GSM network access anywhere in the world! Pop in a GSM simcard to send/receive calls and messages from your projects like you would with a cell phone. There are three protocols you can use to send messages: Short Message Service, Audio, or GPRS Service.

Specifications:

• • Supports standard size GSM sim cards
  • Chipset: SIM900A
  • Quad-Band 850 / 900/ 1800 / 1900 MHz (works on GSM networks in any country)
  • The module is configured and controlled using simple AT commands via the onboard UART:
    • Standard Commands: GSM 07.07 & 07.05
    • Enhanced Commands: SIMCOM AT Commands
  • Has Short Message Service - so that you can send small amounts of data over the network (ASCII or raw hexadecimal).
  • Embedded TCP/UDP stack - allows you to upload data to a web server.
  • Physical Features:
    • External GSM Antenna with SMA connector
    • SIM Card holder (Flip Style)
    • Call Indicator LED
    • Onboard Serial RS232 interface foreasy debugging (3 pins on the left, see diagram for how to wire to an RS232 connector)
    • Onboard reset and restart solder points
    • Additional antenna can be added with IPX mini connector
    • Yellow Logic Level Select Pins: select between 5V and 3.3V interface (yellow pins)
    • Power Wires (red and black)

• • SIM900A Serial Port Output Terminal
  • Power Voltage (to be attached across the red and black wires): 5V DC (1A or higher is recommended)
  • Arduino & Raspberry Pi Compatible
  • Built in surge protection & SMF05C chip onboard for electrostatic protection
  • Dimensions: 2" x 2"
