Infrared LED Attachments for Raspberry Pi NoIR Camera (2 pack)
$9.99
✅SHIPS TODAY
Add night vision to your Raspberry Pi projects with these Infrared LED attachments for the Raspberry Pi NoIR cameras.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Infrared LED set for Pi NoIR cameras
- Gives your Raspberry Pi Night Vision!
- These 2 high power 3W Infrared LEDs attach to the left and right of your Pi NoIR camera to allow the camera to see in darkness!
- LED Power: 3 Watts
- 2.5V regulator onboard
- Supply voltage: 2.5V to 12V (3.3V recommended from Raspberry Pi GPIO)
- Current: 240ma each (480ma for the pair)
- Wavelength: 850nm
- Power rating: 3W
- Works with:
- Raspberry Pi NoIR Camera V1
- Raspberry Pi NoIR Camera V2 (must be wired to be powered from the 3.3V and GND pins. V2 camera does not have metal contacts on the board like V1. We recommend the V1 camera for these lights because no wiring is needed.)
- Raspberry Pi NoIR Camera V1
- Onboard light sensor (The LEDs will only turn on when it is dark out to conserve energy)
- Potentiometer onboard for adjusting the ambient light threshold
- When the light in the room is below the ambient light threshold, the LED will be on.
- Takes power from the Raspberry Pi's power supply so heatsinks and / or a cooling fan are recommended to dissipate excess heat created from the 3W high power drain.
- The screw holes are used for both mounting and power supply! No extra wiring necessary!
- Ideal imaging distance: up to 9.8 feet (3 meters)
- When the distance goes up to 6m, the night vision camera can just capture blurry outlines.

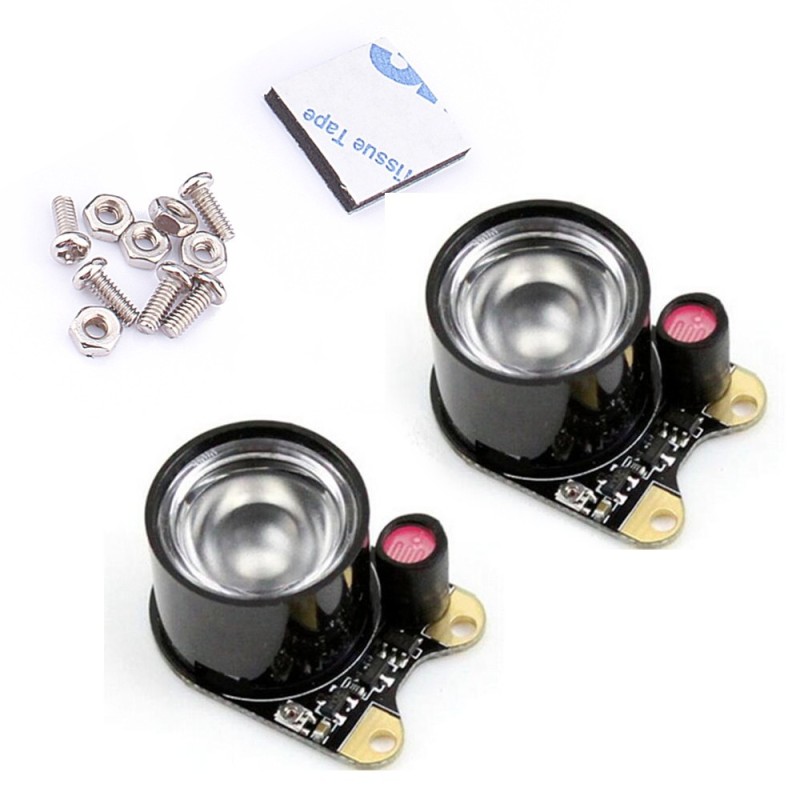

- Includes:
- 2 Infrared LED Boards
- 5 Screws
- 5 Nuts
- 1 Adhesive Pad
- Connect the Infrared LED Boards to the left and right of the camera PCB with the screws
- Adjust the potentiometer to set a proper ambient light threshold, which toggles the infrared LED ON/OFF automatically
TS2070
