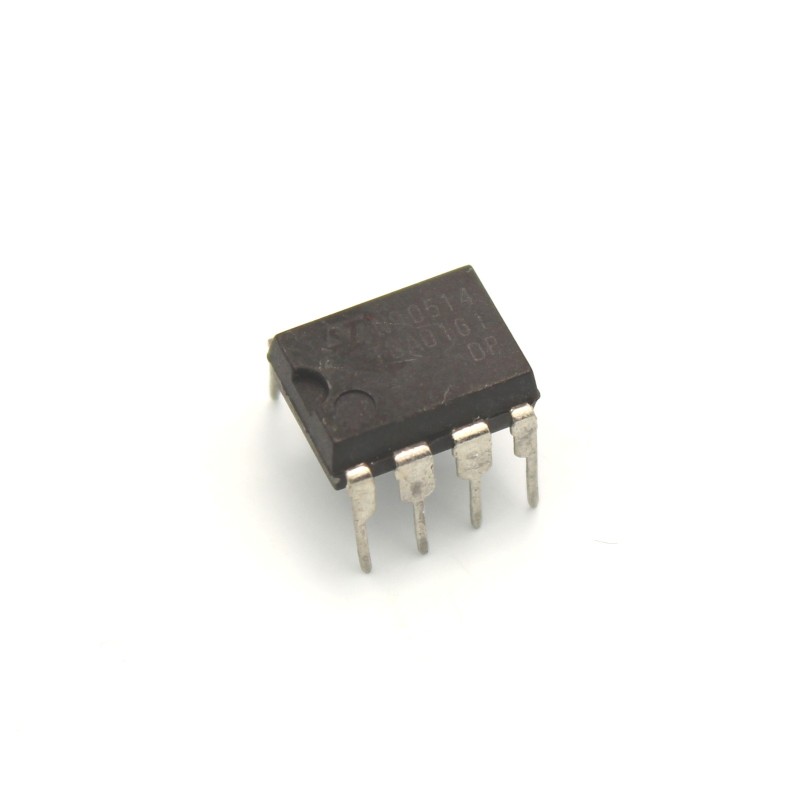

TDA0161 Metal Detector IC

These monolithic integrated circuits are designed for metallic body detection by sensing variations in high frequency Eddy current losses. Using an externally-tuned circuit, they act as oscillators.
The output signal level is altered by an approaching metallic object. The output signal is determined by supply current changes. Independent of supply voltage, this current is high or low, according to the presence or absence of a closely located metallic object.

Features:

• TDA0161 Metal Detector IC
• Useful for building metal detector circuits
• Package: DIP
• Number of pins: 8
• Operating Voltage: 4V - 35V DC
• Reverse Voltage Limitation: -1V
• Supply Current close target: 8mA - 12mA
• Supply Current remote target: 1mA
• Oscillator Tuning Frequency: 10 MHz
• Output Frequency: 0 to 10kHz
