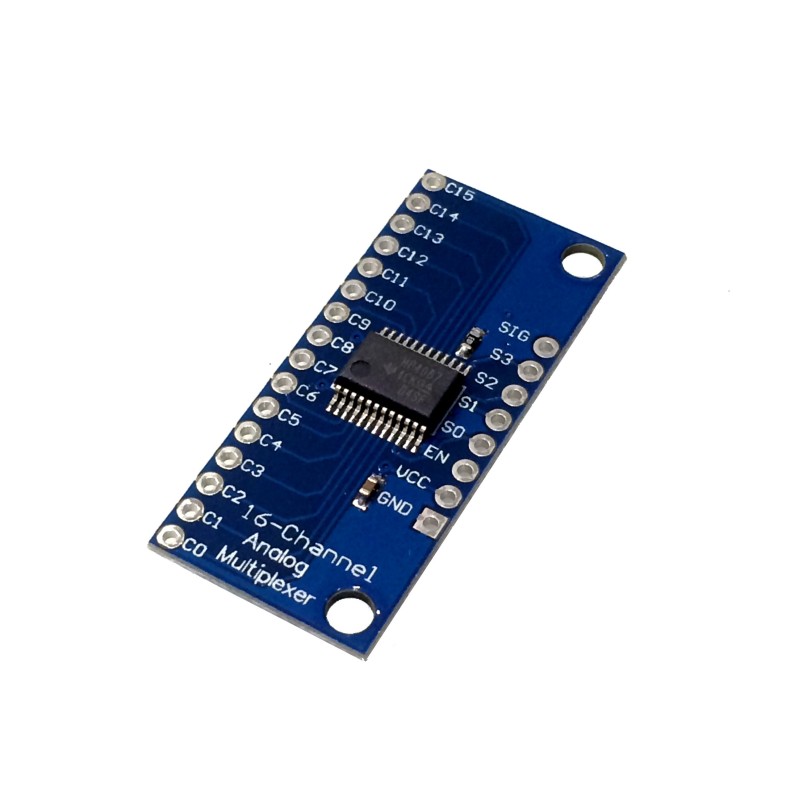

Analog/Digital MUX Breakout - CD74HC4067
$4.95
✅SHIPS TODAY
Easily switch a single pin between 16 connection options. Control which pin the SIG pin gets connected to. Multiplex between 16 different options!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Use this Multiplexer / Demultiplexer to connect one input/output pin from your microcontroller to up to 16 things! This board works like a rotary switch where the select pins (S0-S3) determine which pin (C0-C15) is connected to the SIG pin. Just connect the select pins (S0-S3) to your Arduino, Raspberry Pi or other microcontroller, and send it the binary address of the channel you want the SIG pin to be connected to.
Features:
- Connect up to 16 devices to your system using only 5 pins!
- Operating Voltage: 2V to 6V
- Bidirectional
- Works with both digital and analog signals
- Enable Pin (so you can turn off all the switches at the same time)
- Arduino & Raspberry Pi Compatible
- On resistance: 70 Ohms @ 4.5V
- 6ns break-before-make @ 4.5V
- Operating Temperature: -55 to 125C
TS1426
