High Resolution Pressure Sensor - MS5803-14BA I2C & SPI
$59.90
✅SHIPS TODAY
This MEMS pressure sensor measures the absolute pressure of the fluid around it which includes air, water, and anything else that acts like a viscous fluid. Determine altitude and water depth using high resolution accurate pressure readings.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:

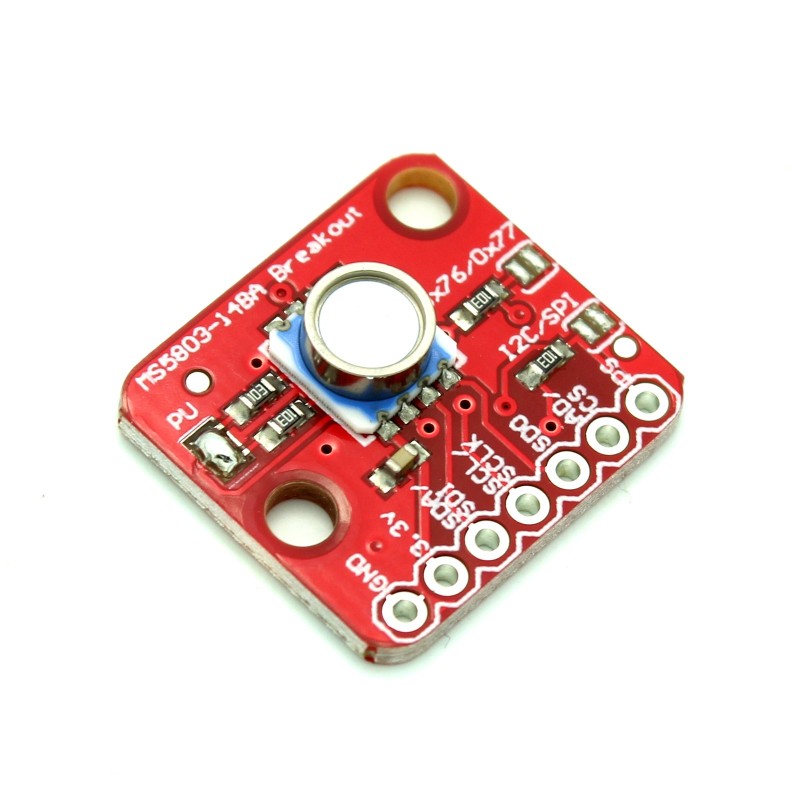

- MS5803-14BA Pressure Sensor Breakout
- High resolution pressure sensor
- Both I2C and SPI interfaces
- MEMS pressure sensor
- Measures the absolute pressure of the fluid around it
- Works for measuring the pressure in air, water, and any other viscous fluids
- Useful for determining altitude, water depth, or any other tasks that require an accurate pressure reading.
- What makes the MS5803-14BA unique is the the gel membrane and antimagnetic stainless steel cap that protects against 30 bar water pressure.
- Resolution range of 1 / 0.6 / 0.4 / 0.3 / 0.2 mbar
- Solder across the two solder points to jump and switch between I2C and SPI interfaces
- Address 0x76 or 0x77 selectable by solder jump for addressing multiple boards at the same time
Specifications:
- Operating Voltage: 1.8V - 3.6V
- Power consumption: 1.4mA
- Communication Protocol: I2C and SPI
- Communication Speed: up to 3.4 MHz via I2C / up to 10 MHz via SPI 3 or 4 wire
- Full calibrated
- Pressure Range: 0hPa to 14000hPa (0 to 14 bar)
- Resolution: 1 / 0.6 / 0.4 / 0.3 / 0.2 mbar
- Gel protected
- With SPI you can connect multiple sensors together without worrying about I2C address collisions
- Pinout:
- GND: 0V
- 3.3V: 3.3V
- SDA/SDI: Data Line (to microcontroller such as Arduino or Raspberry Pi)
- SCL/SCLK: Clock Line (to microcontroller such as Arduino or Raspberry Pi)
- SDO: Serial Data Out
- AD/CS: Chip Select
- PS: SPI PS
- Use GND and 3.3V for power, SDA/SDI and SCL/SCLK for an I2C interface and SD0, AD/CS, and PS for a SPI interface.
- Dimensions: 18.3mm x 20.5mm
