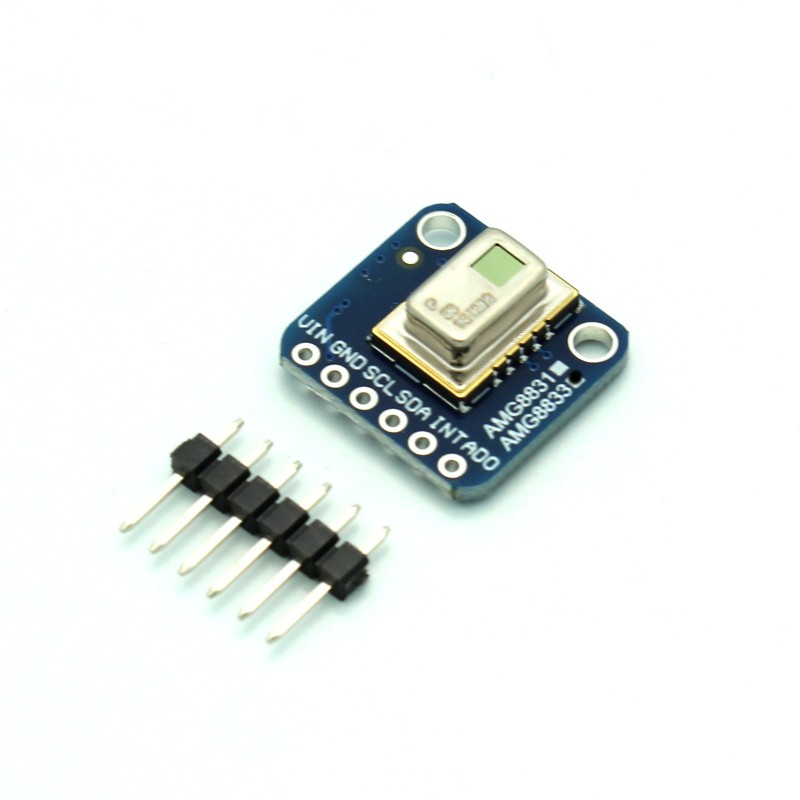

AMG8833 IR Thermal Camera Breakout
$49.95
✅SHIPS TODAY
AMG8833 IR Thermal Camera Sensor for adding heat vision to your projects. Returns an 8x8 array with 64 values for each of the points from the array. I2C Serial Communication. Arduino & Raspberry Pi compatible.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- AMG8833 IR Thermal Camera Sensor
- 8x8 array of IR thermal sensors
- Communication Protocol: I2C
- Operating Voltage: 3V - 5V DC
- Returns an array of 64 independent temperature readings
- Temperature Measurement Range: 0C to 80C (32F to 176F)
- Accuracy: +/- 2.5C ( +/- 4.5F )
- Max Human Detection Distance: 23ft (7 meters)
- Max Frame Rate: 10Hz
- Interrupt pin can be set to trigger when a pixel of your choice exceeds or dips below a threshold of your choice
- Product Dimensions: 1" x 1" x 0.2" (25.8mm x 25.5mm x 6mm )
- Product Weight: 0.1oz (3g)
- ADO I2C Address Pin which can be set HIGH or LOW to change the address of the board in case you want to use 2 sensors on the same I2C bus and be able to address each one independently.
- Arduino & Raspberry Pi Compatible
Pinout:
- VIN: Power (3V to 5V)
- GND: Ground (0V)
- SCL: I2C Clock
- SDA: I2C Data
- INT: Interrupt (This pin is optional and isn't required for normal use)
- ADO: I2C Address Pin (Set to low for I2C Address 0x68 and set to HIGH for I2C Address 0x69) (This pin is optional and isn't required for normal use)
Works with Arduino & Raspberry Pi AMG8833 / AMG88xx libraries.
