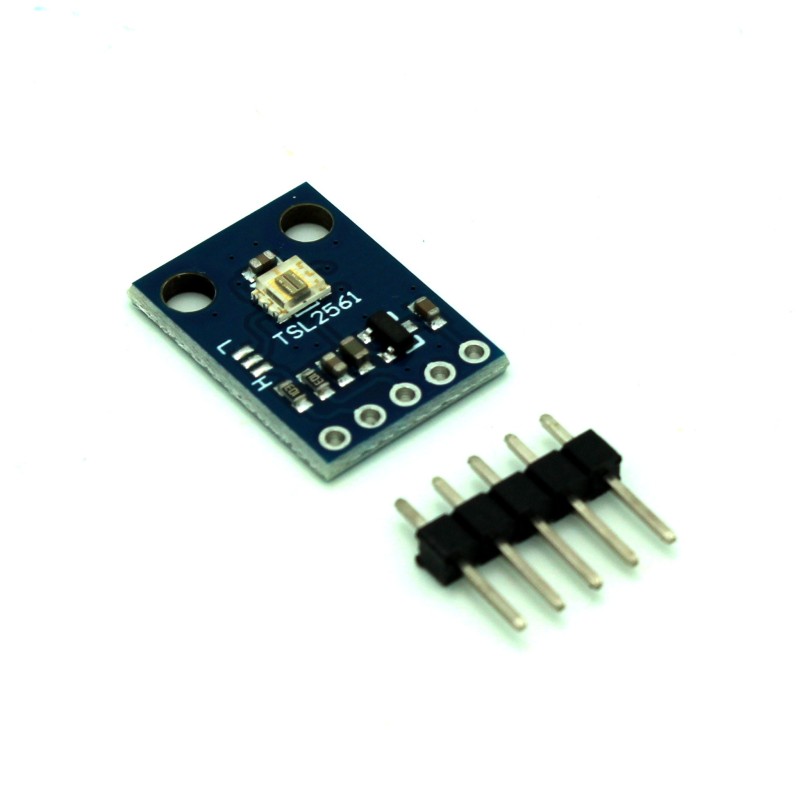

TSL2561 Digital Luminosity/Lux/Light Sensor Breakout
$5.90
✅SHIPS TODAY
The TSL2561 is a light-to-digital converter that translates light intensity into a digital signal output I2C. Sensitive to visible light and infrared for a near-optical response with a dynamic range of 20 bits. Two integrated ADCs convert the photodiodes' currents into a digital output, which measures the light intensity of each channel.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Digital High Dynamic Range Light Sensor Module
- TSL2561 luminosity sensor
- More precise than low-cost CdS cells, allowing for exact lux calculations
- Configurable gain/timing ranges to detect light from 0.1 to 40,000+ Lux
- Contains both infrared and full spectrum diodes
- Measures infrared, full-spectrum, or human-visible light separately
- Most sensors only detect one type of light
- Approximates Human eye Response
- Precisely Measures Illuminance in Diverse Lighting Conditions
- This board/chip uses I2C 7-bit addresses 0x39, 0x29, 0x49, selectable with jumper pads
- Lux Range: 0.1 Lux to 40,000 Lux
- Adjustable gain / timing via I2C
- Pinout:
- VCC: Power
- GND: Ground
- SCL: Serial Clock Line
- SDA: Serial Data Line
- INT: Interrupt Pin (Not necessary to connect for basic functionality. Can be set via I2C registers to trigger if the luminosity passes a threshold or after conversion.)
- Approximates Human eye Response
- Operating Voltage: 3.3V-5V
- Current Rating: 0.6mA
- Arduino and Raspberry Pi Compatible
- Dimensions: 19mm x 14mm x 1mm / .75" x .55" x .04"
- Operating Temperature: -30C to 90C
- Serial Communication Protocol: I2C
- Automatically filters 50 Hz/60 Hz light fluctuations from indoor lighting for a clear signal irrespective of environment
- Can be used with Arduino, Raspberry Pi, Teensy, Photon etc.
