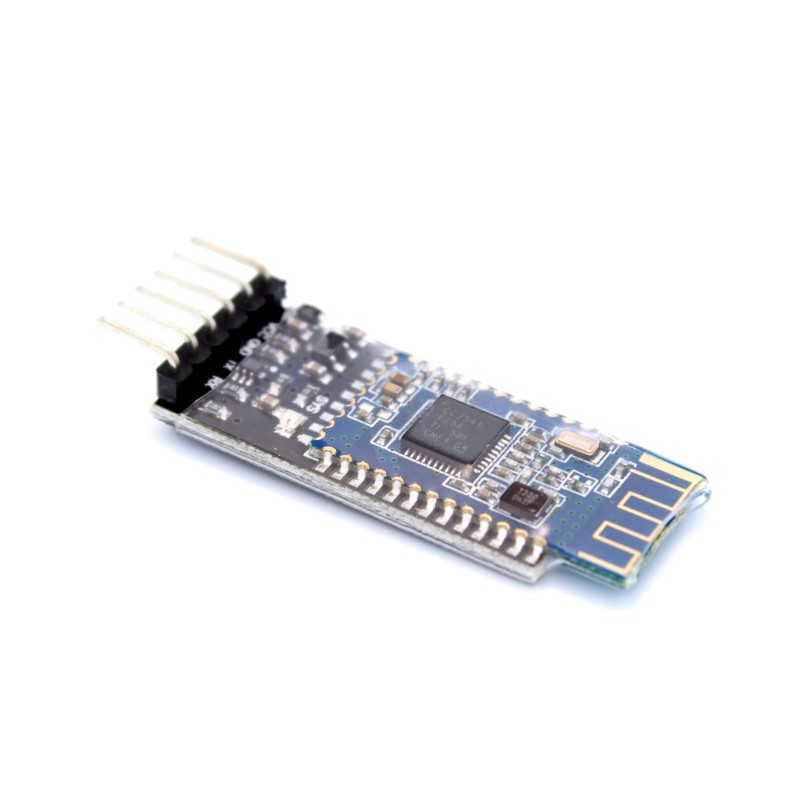

HM-10 Bluetooth BLE Module
$14.99
✅SHIPS TODAY
The HM-10 Bluetooth Low Energy Module will allow you to send/receive data over bluetooth while using low energy. Just connect to your Arduino or Raspberry Pi to send and receive data wirelessly up to 32.8 feet (10m)!
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
HM-10 can replace the HC-05 and is also Low Energy!
- Bluetooth 4.0 BLE
- Serial Module
- Can replace HC-05, HC-06, HC-07 etc. while consuming less power
- Supports Master, Slave and Master-Slave modes (selectable via AT command)
- Internal logic level conversion circuit so it can be used with 5V & 3.3V logic levels
- Power input with reverse polarity protection
- Can connect to Android and iOS devices
- Range: approx 26.25ft (8m)
- Wireless serial communication (UART)
- The power can be adjusted -23dbm, -6dbm, 0dbm, 6dbm, through an AT Command (AT+POWER)
- Working frequency: 2.4GHz ISM band .
- Modulation method: GFSK(Gaussian Frequency Shift Keying) .
- RF Power:≤4dBm, Class 2 .
- Sensitivity:≤-84dBm at 0.1% BER .
- Speed: 2.1Mbps(Max) / 160 kbps (Asynchronous), 1Mbps/1Mbps(Max) (Synchronous).
- Security: Authentication and encryption
- Working temperature:–5C to +65C
- Flash:256Kb
- Power: 0.5 mA for Standby, 8.5 mA for Active,
- Supports auto sleep
