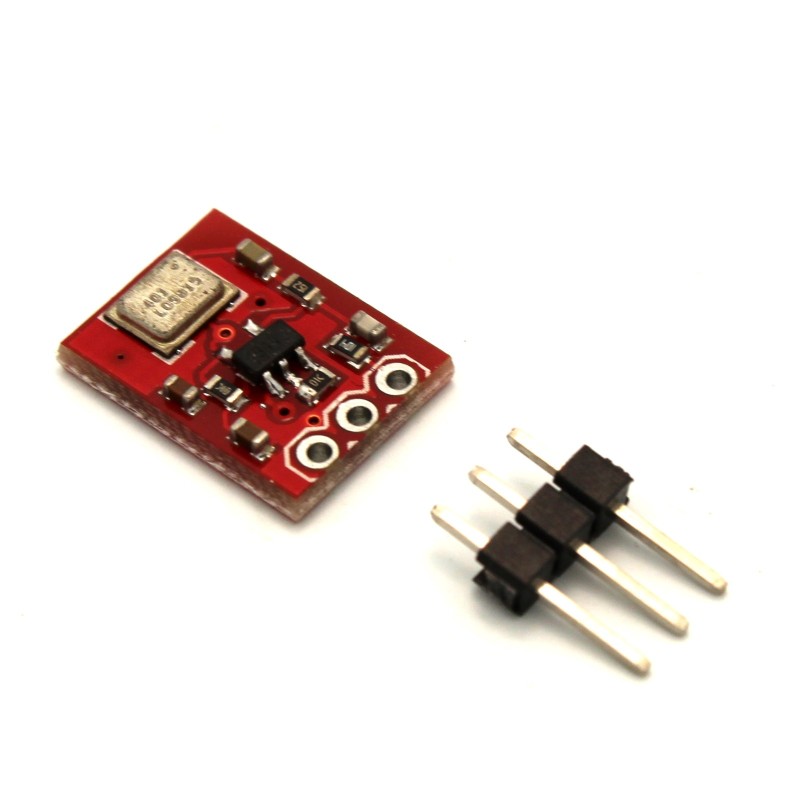

ADMP401 MEMS Microphone Breakout Board
$8.99
✅SHIPS TODAY
ADMP401 MEMS Microphone Board for sound detection. Produces an analog signal corresponding to the sound detected by the microphone.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features :
- ADMP401 MEMs Microphone Breakout Board
- One of the key advantages to this breakout and microphone is the bottom ported input, which means the microphone's input can fit flush against the enclosure of your project.
- The amplifier on the breakout has a gain of 67 and more than meets the bandwidth requirements of the mic.
- The amplifier's AUD output will float at one half Vcc when no sound is being picked up.
- The amplifier produces a peak-to-peak output of about 200mV when the microphone is held at arms length and is being talked into at normal conversational volume levels.
Specification:
- Onboard Mic: ADMP401
- 3dB roll off at 100Hz and 15kHz
- Supply voltage: 1.5V to 3.3V DC
- Output: 40mW
- SNR: 62dBA
- Size: 1.3cm x 1cm
- Analog signal output
- Useful for sound detection
TA1204
